Origin: Suizhou China
Brand: CLW
Emission standard: EURO 2/3/4/5/6
Steering wheel: LHD/RHD
Chassis: Isuzu/ Sinotruck/Shacman/Dongfeng/CLW/JAC/Foton/JMC
+86 13329890945
+86 19813830308
+86 13329890945
+86 19813830308

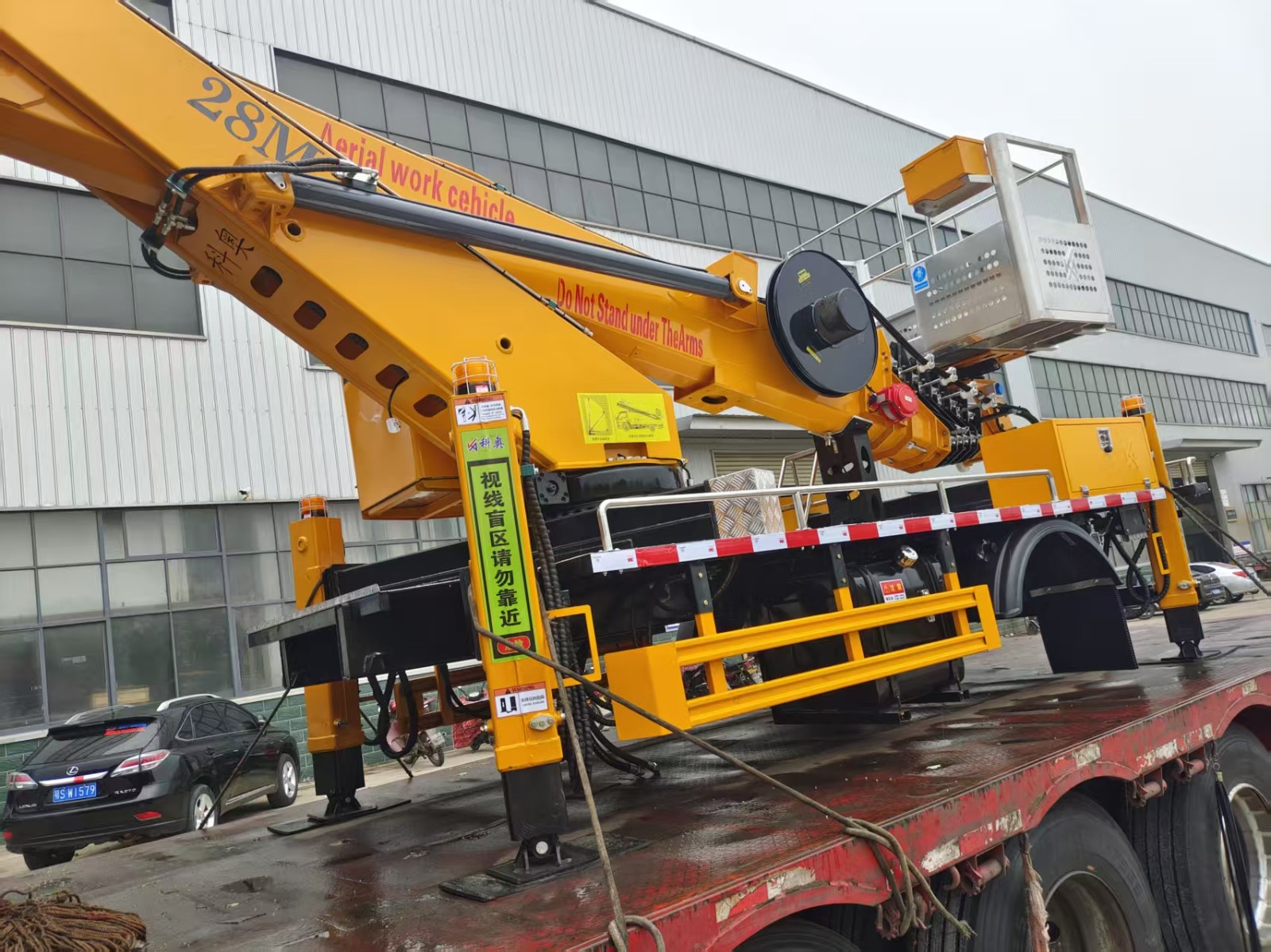

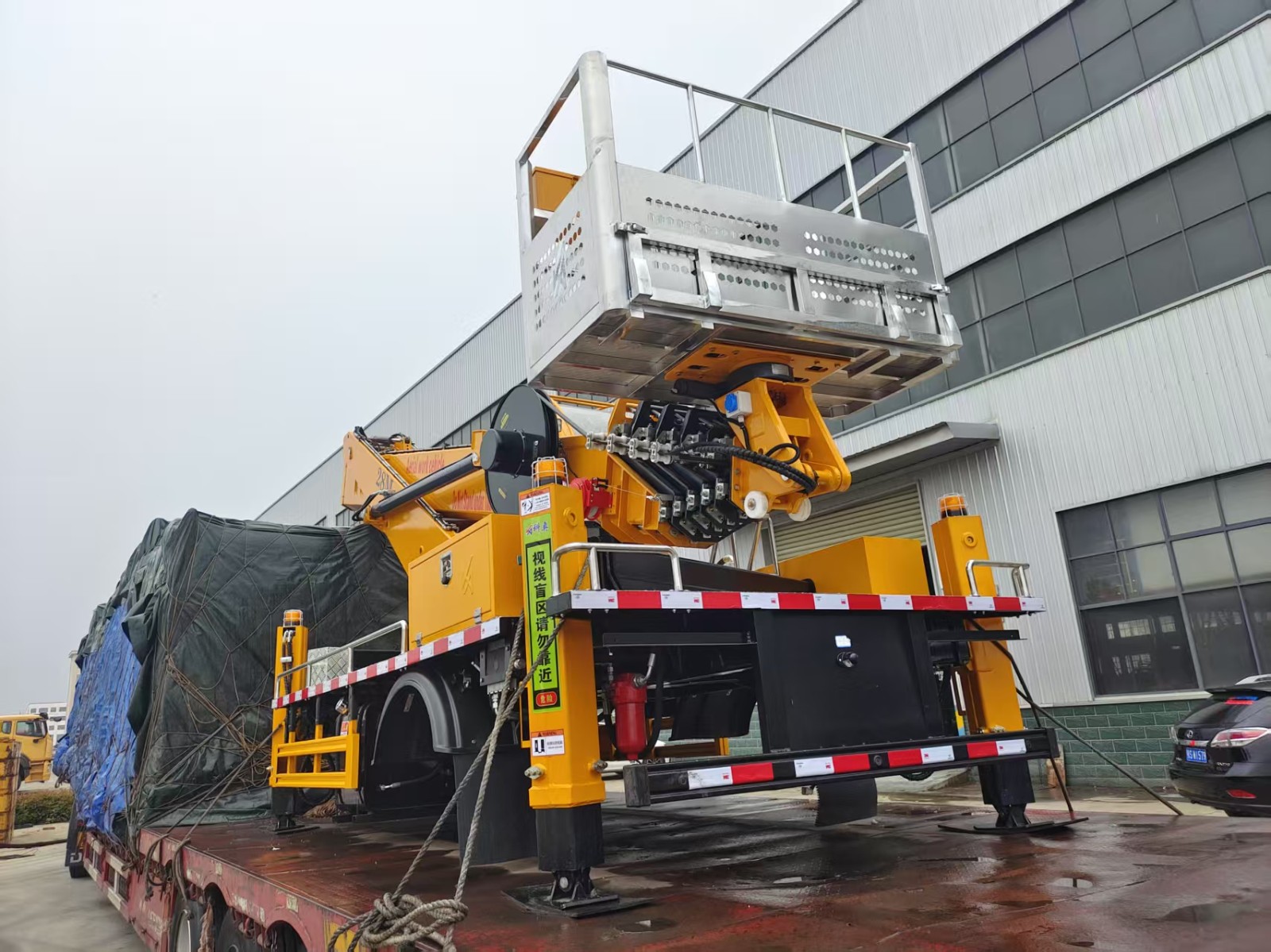

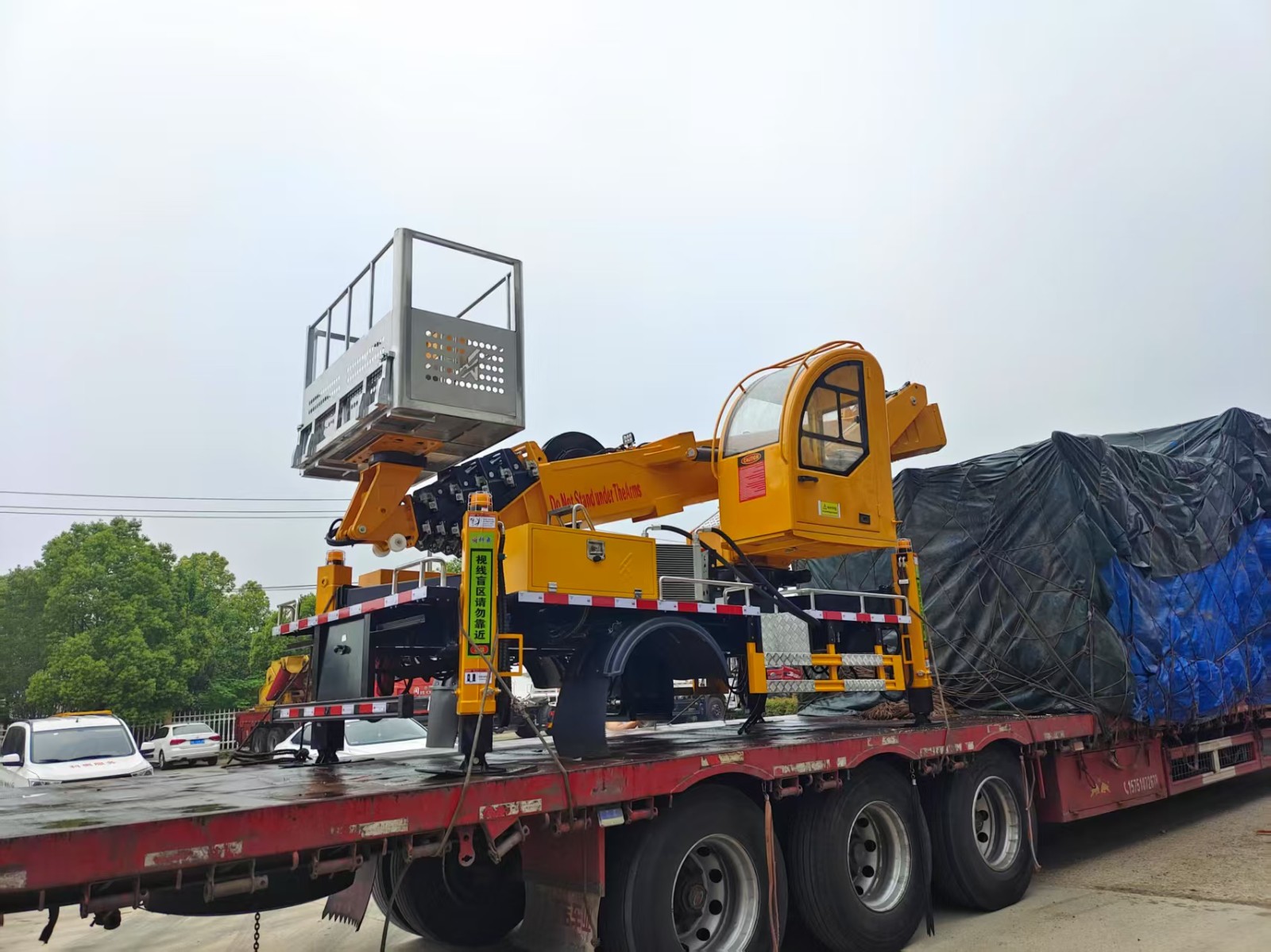

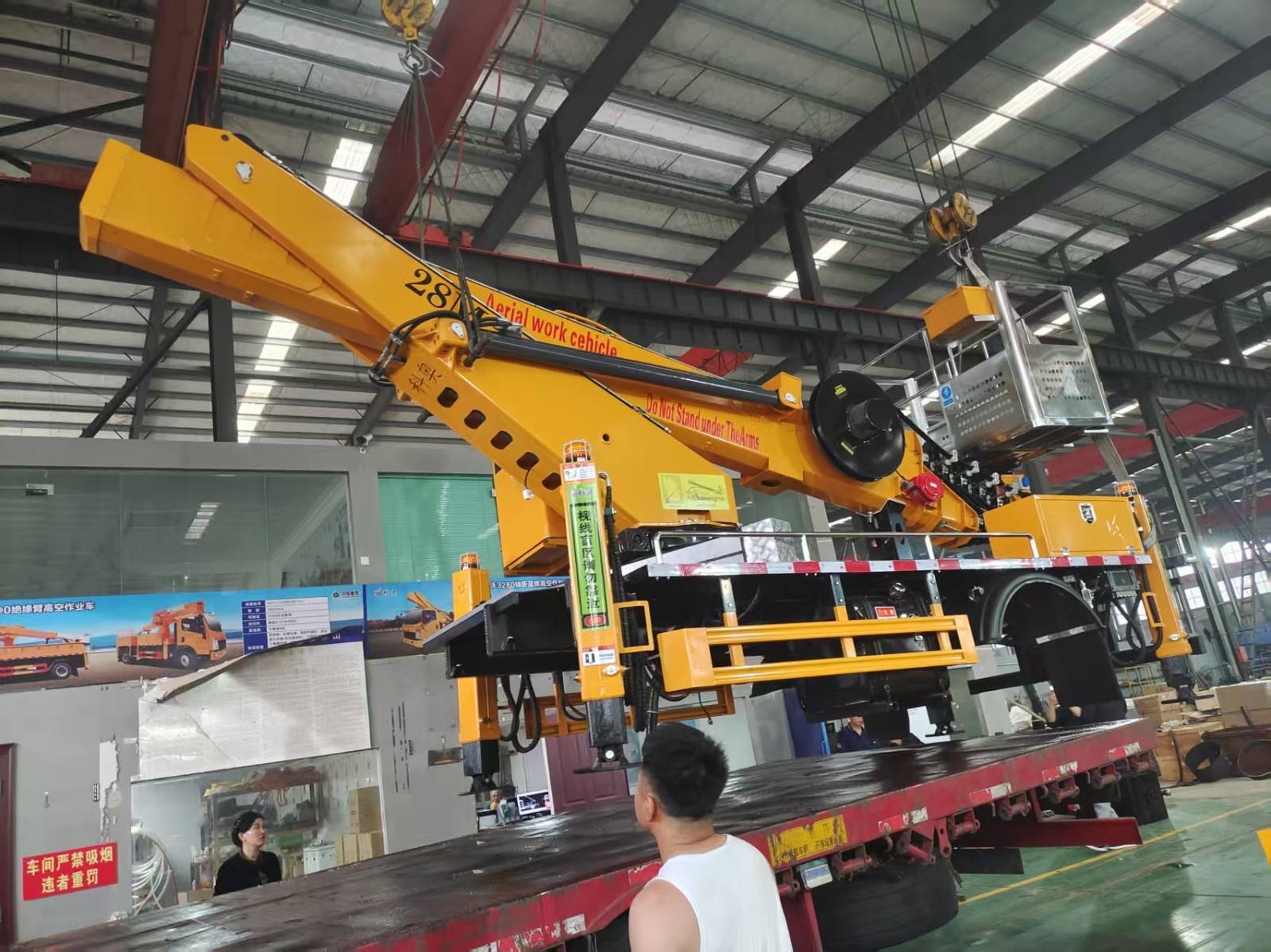

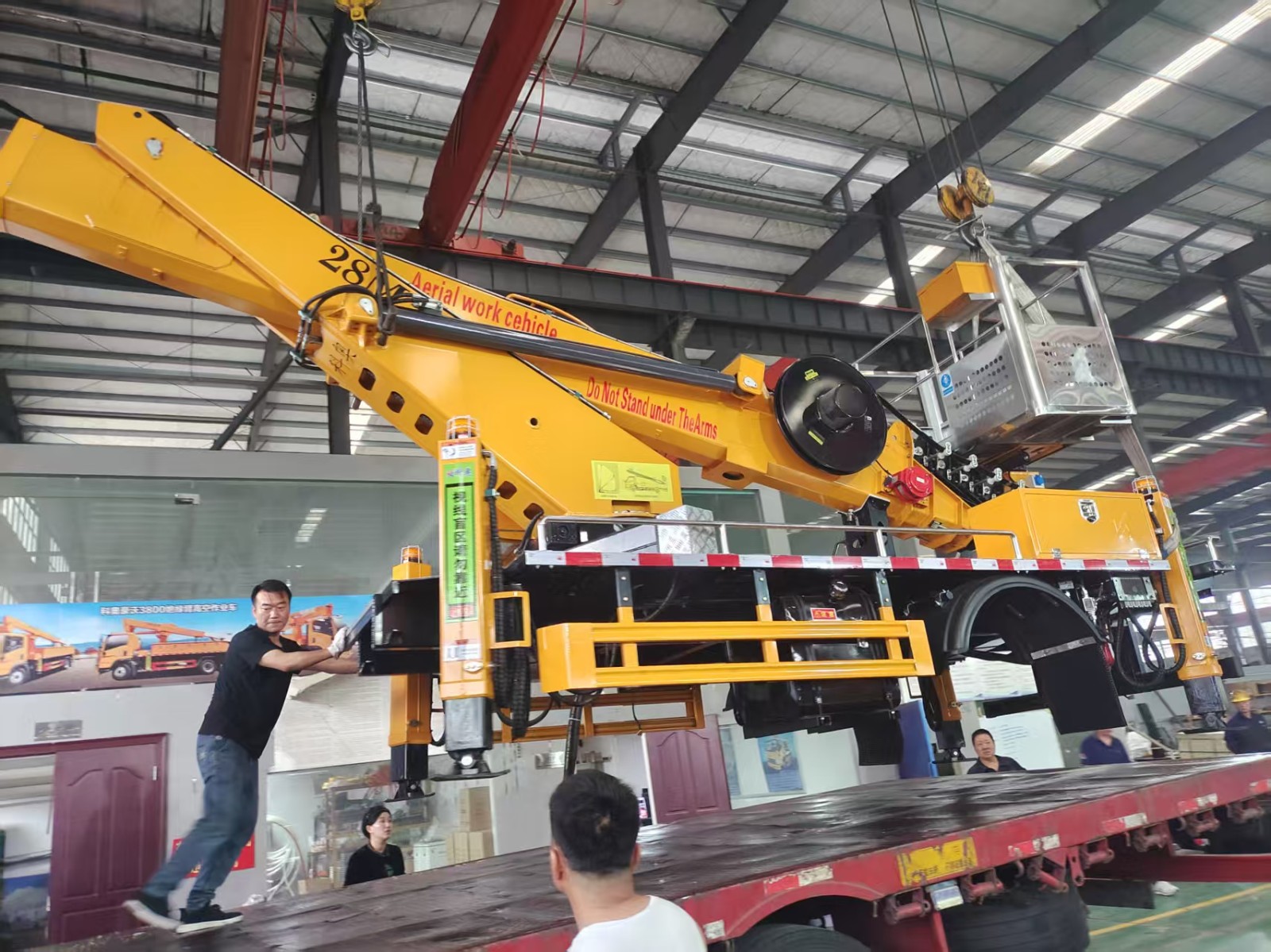

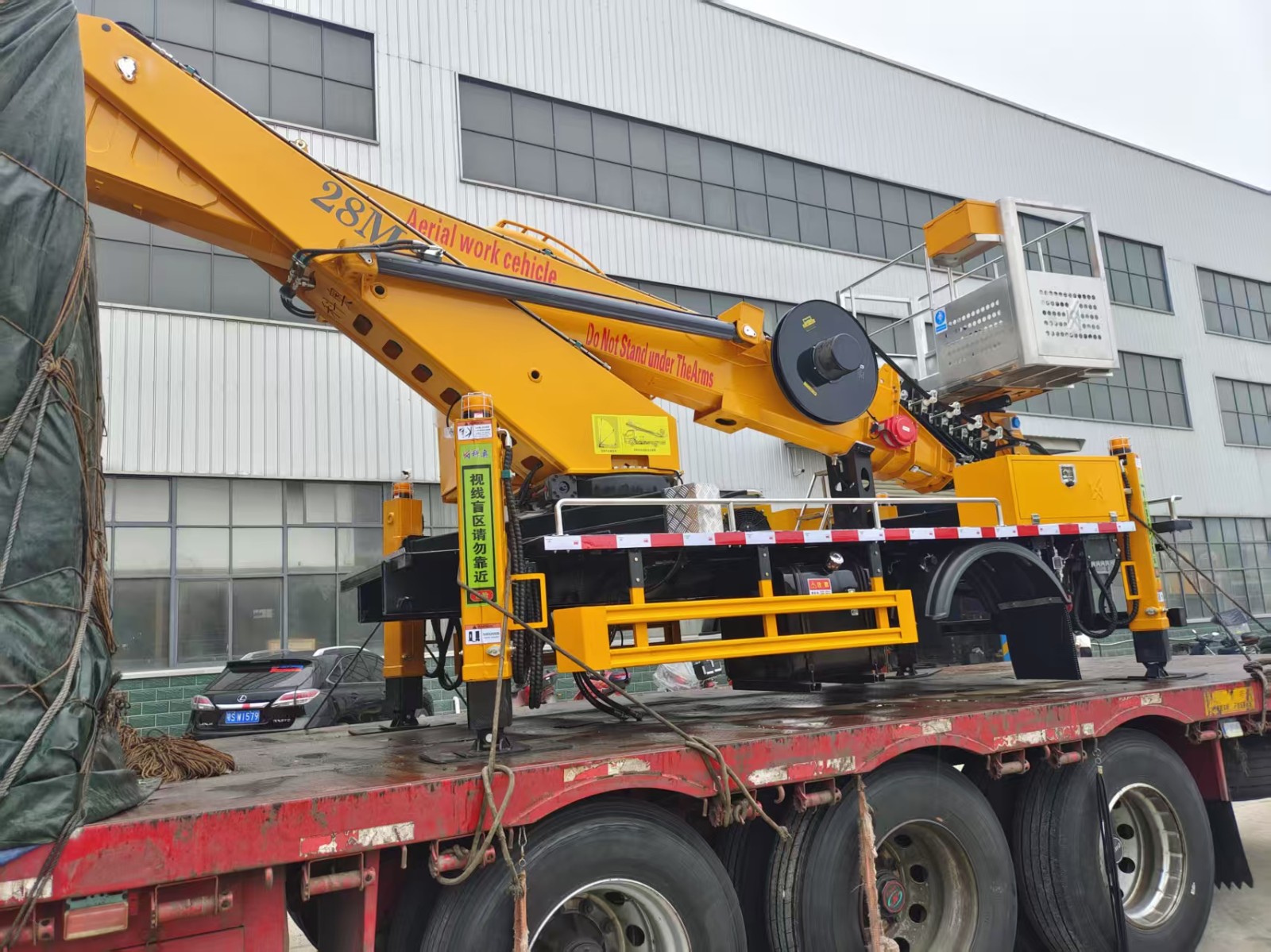

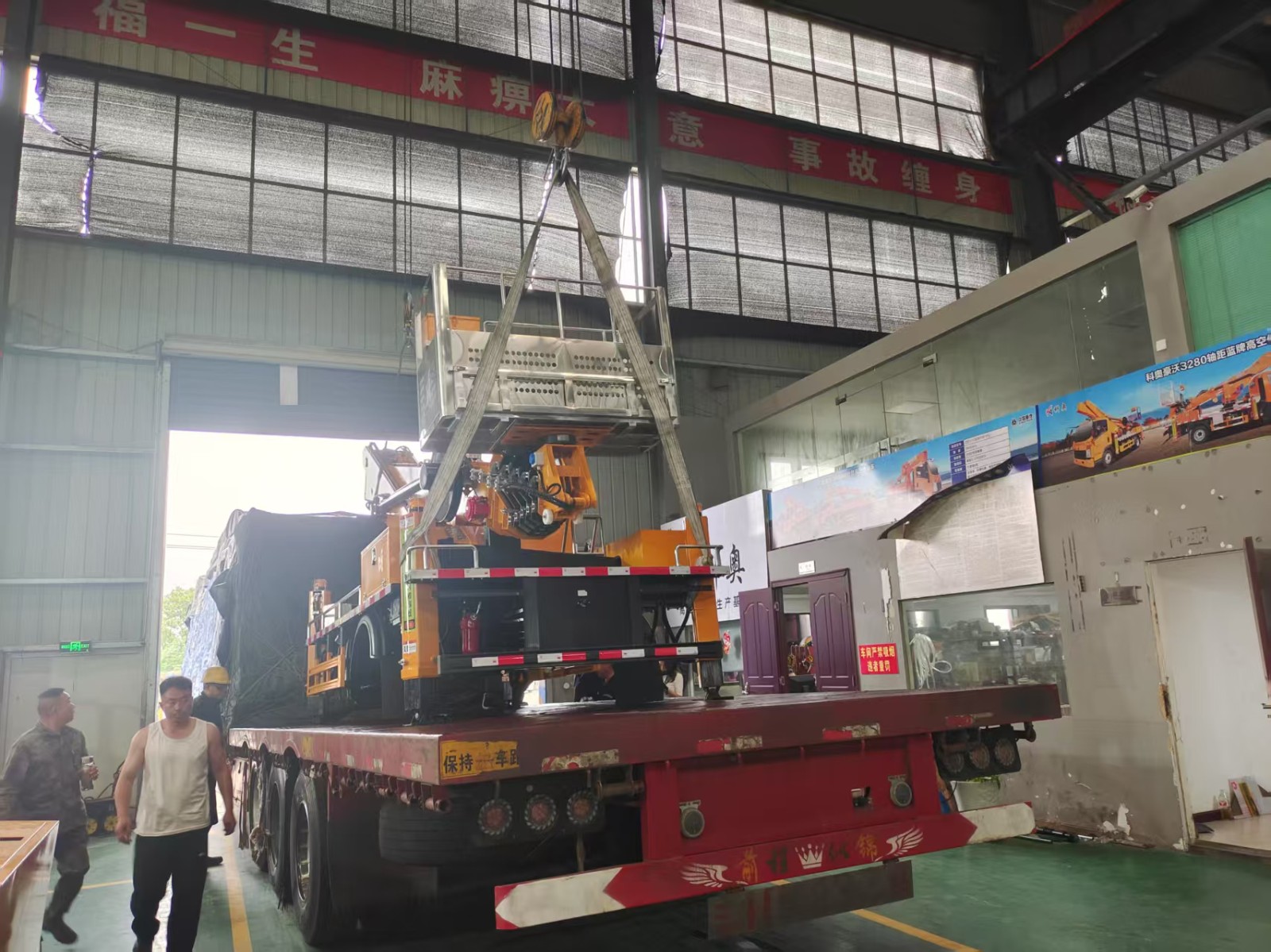

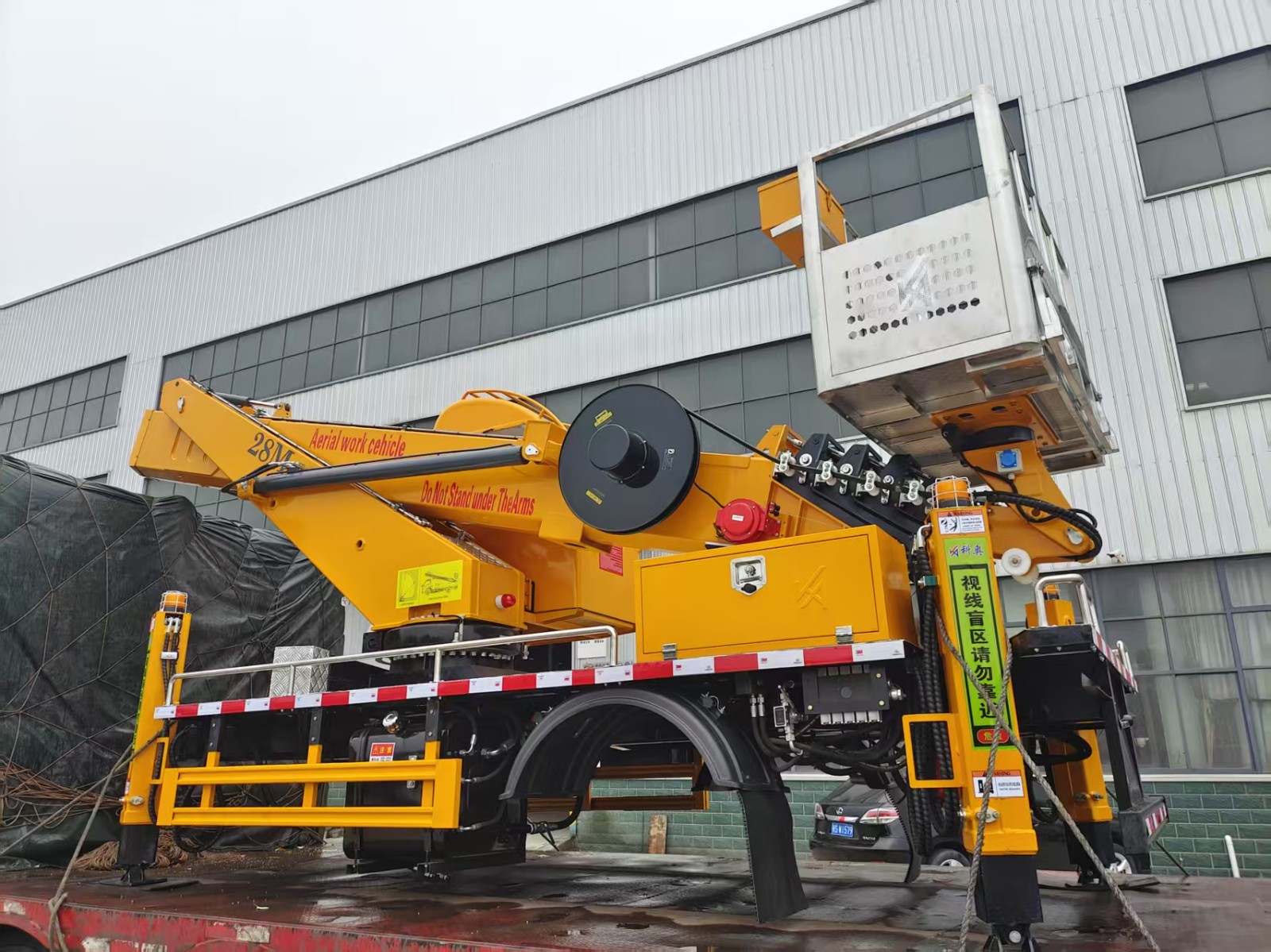

28m aerial platform truck body pictures:
2. The 28m aerial platform truck body is customized for customer's local chassis, it will be installed on ISUZU chassis, with 140KW power engine, and the wheelbase is 3815mm which is suitable for the 28m aerial platform truck.
3. Parameters of the 28m3 aerial platform truck body:
sort | term | value |
Dimension | overall length | 7100mm |
overall width | 2200 mm | |
overall height | 3200 mm | |
Parameter of weight | Rated Passengers (including driver) | 3 person |
total weigh | 10000kg | |
Main performance | Loading capacity of aerial Platform | 200kg |
Maximum working height | 28m | |
operating radius when Maximum working height | 5.0m | |
Maximum operating radius | 13.0m | |
Working height when maximum operating radius | 17.0m | |
Outrigger span horizontally | 5400mm | |
Outrigger span longitudinal | 4560mm | |
Amplitude time of boom | 50s | |
rotating speed of boom | 60s/r | |
Releasing/retrieving time of Outrigger | 35s |
