Chengli Special Automobile Co., Ltd is an important branch of CLW group with registered capital 100, 000, 000 RMB(14 millions US Dollars) and total capital 6, 000, 000, 000(840 millions US Dollars). Located in Suizhou city, hubei province, central China, Chengli Special Automobile Co., Ltd is one of the largest manufacturers authorized by National Ministry of Industry and Information for production of 800 types of special trucks and export Center of Trucks and Spare parts identified by Hubei Province Government, such as Water Tank Truck, Insulation Truck and Milk Truck, Sewage Suction Truck, Garbage Truck, Man lift Truck/Aerial Platform Truck, Truck with Crane, Fuel Truck/Trailers, Chemical Tanker Delivery Truck, Bulk Cement Truck, Concrete Mixer Truck, Fire Truck, Dump Truck, Van Truck/Refrigerated Truck, Wrecker/Tow Truck, Flatbed Truck/Low Bed, Tractor, LPG Tank/Truck/Trailer/Skid Station, Road Sweeper/Cleaning Truck, Ambulance Trucks......
Origin: Suizhou China
Brand: CLW
Emission standard: EURO 2/3/4/5/6
Steering wheel: LHD/RHD
Chassis: Isuzu/ Sinotruck/Shacman/Dongfeng/CLW/JAC/Foton/JMC
Dongfeng Tuyi 4m3 high pressure cleaning and sweeping truck parameters:
| model | CLW5040TXSBSL | outer diameter | 5620*1750*2300mm |
| GVW | 4495kg | rated loading capacity | 545kg |
| curb weight | 3820kg | axle loading capacity | 1650/2845mm |
| front/rear suspension | 1190/1630mm | passengers | 3 |
| max speed | 80km/h | approach/departure angle | 21/5° |
Dongfeng Tuyi 4m3 high pressure cleaning and sweeping truck chassis parameters:
| model | EQ1045SJ16DC | brand | Dongfeng |
| wheelbase | 2800mm | tyre size | 185R15LT |
| front gauge | 1369mm | rear gauge | 1242mm |
| leaf spring number | 3/5 | fuel type | diesel |
| engine brand | Quanchai | engine power | 95hp |
Dongfeng Tuyi 4m3 high pressure cleaning and sweeping truck body configurations:
clean water tank volume 1.8m3, wast tank volume 2m3
tank material: Q235(stainless steel for choice)
57hp auxiliary engine
automatic clutch
maintenance-free fan
Hypermix electromagnetic valves
Liechima high-pressure water pump
Hypermix hydraulic cylinder
one-button operation.
maximum sweeping width 2000mm
two sweeping discs in the middle, and rear suction cup
The high pressure cleaning and sweeping truck is equipped with high-pressure flushing function
The entire truck's water spraying system consists of high-pressure guns, suction cup water spraying and suction cup left and right water spraying systems

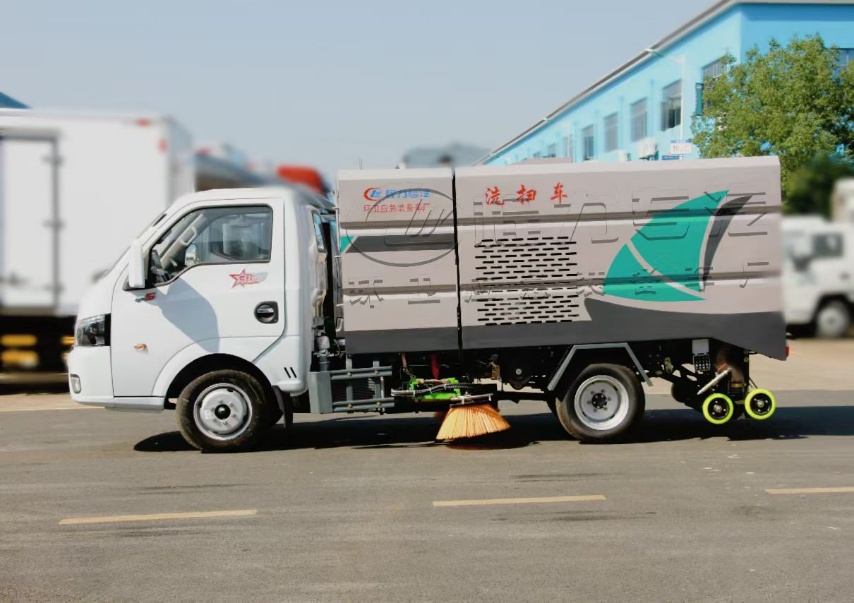

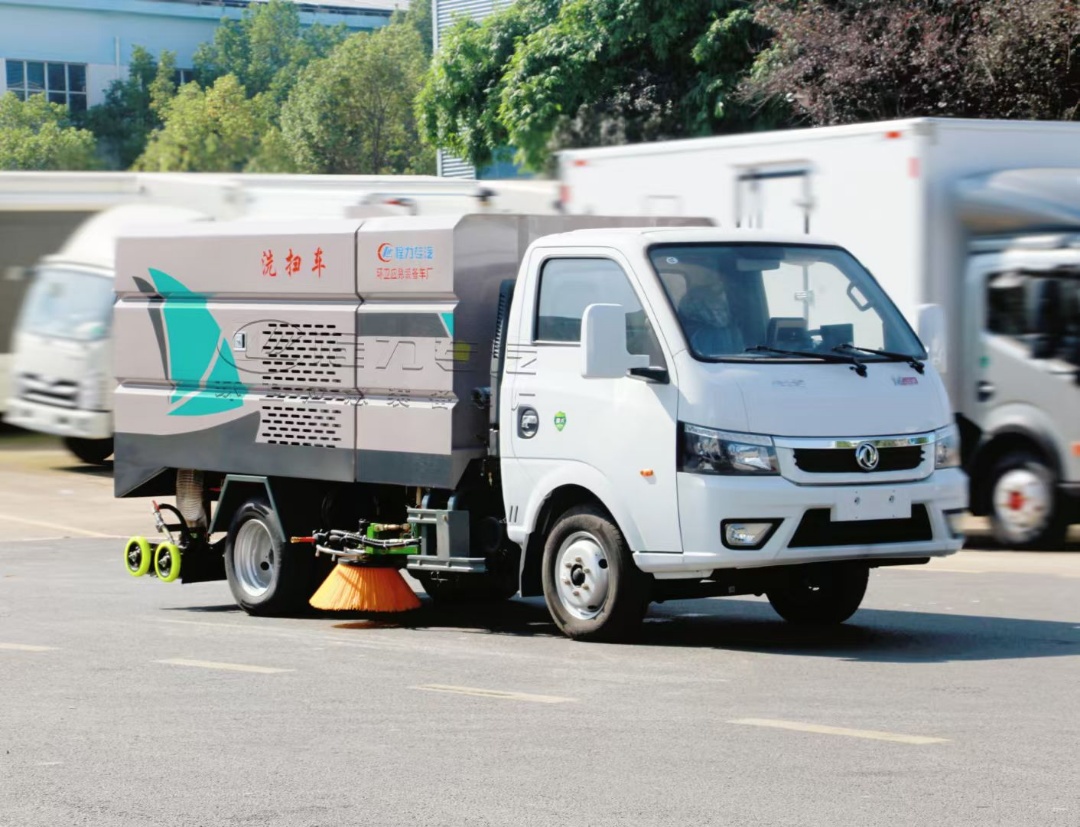

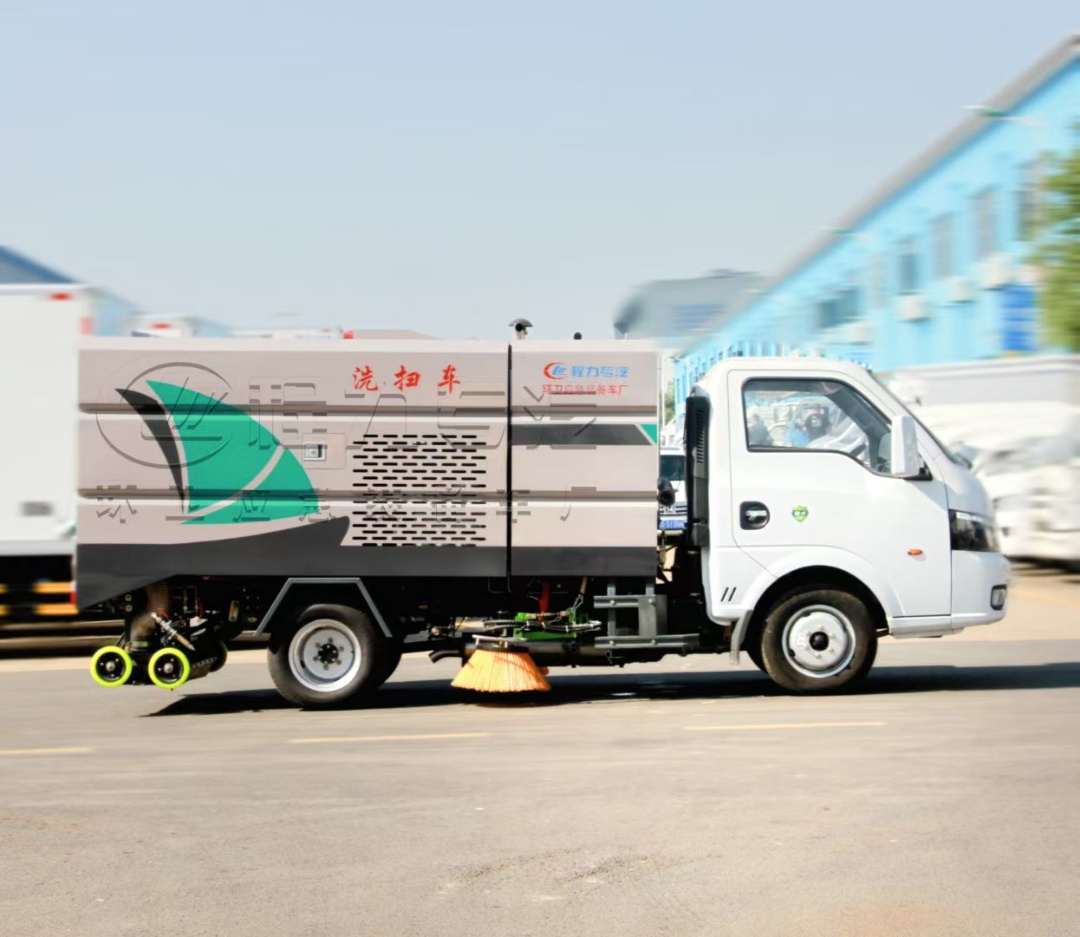

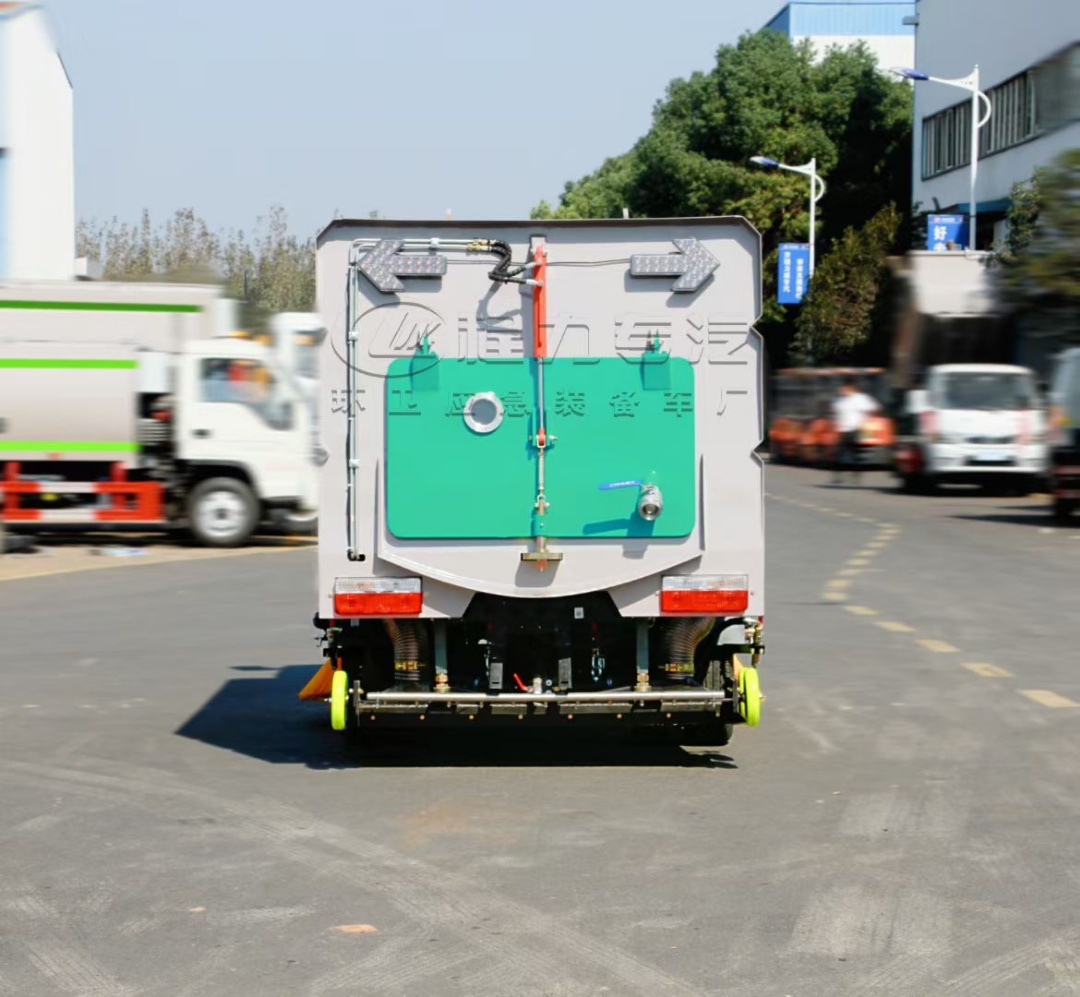

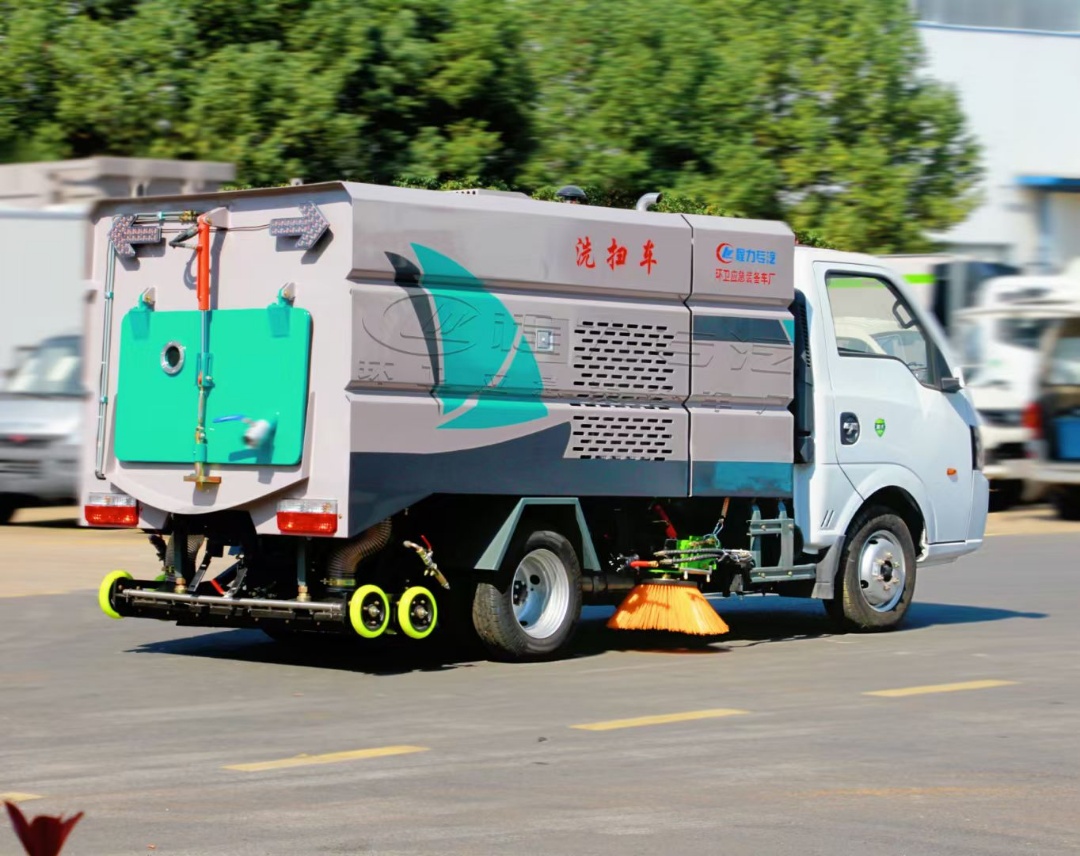

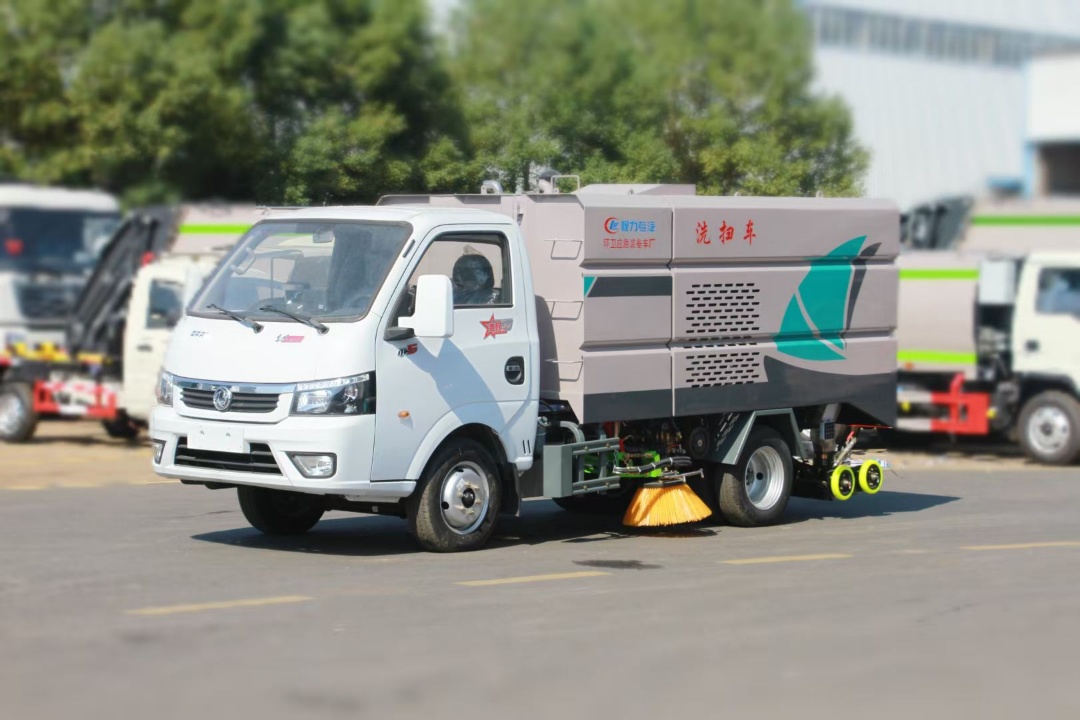

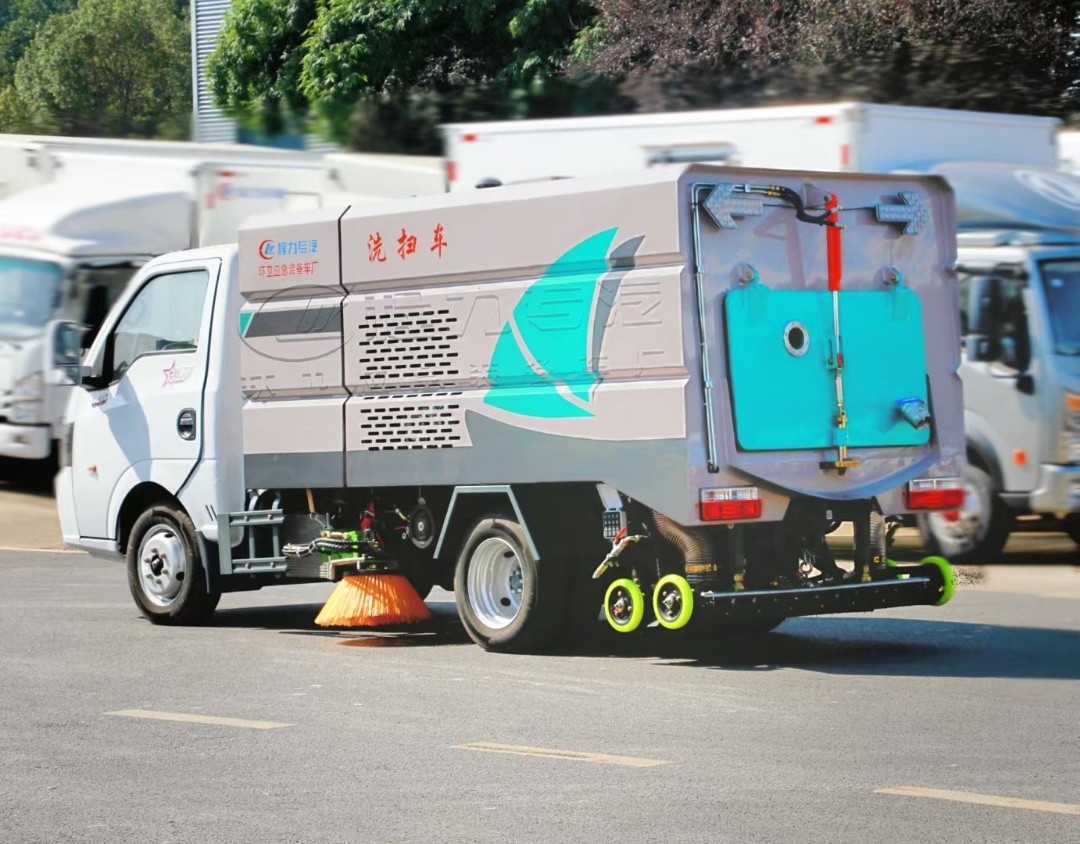

More pictures of the Dongfeng Tuyi 4m3 high pressure cleaning and sweeping truck:
