Origin: Suizhou China
Brand: CLW
Emission standard: EURO 2/3/4/5/6
Steering wheel: LHD/RHD
Chassis: Isuzu/ Sinotruck/Shacman/Dongfeng/CLW/JAC/Foton/JMC
Dongfeng 12m3 oil transport truck parameters:
model | CL5180GYYE6 | outer diameters | 7635*2500*3100mm |
GVW | 18000kg | rated loading capacity | 10350kg |
curb weight | 7455kg | axle loading capacity | 6500/11500mm |
front/rear suspension | 1475/2210mm | passengers | 3 |
max speed | 80km/h | approach/departure angle | 23/12° |
Dongfeng 12m3 oil transport truck chassis parameters:
model | EQ1188GSZ6DJ | brand | Dongfeng |
axle number | 2 | tyre number | 6 |
wheelbase | 3950mm | tyre size | 10.00R20 |
front/rear gauge | 1910/1800mm | fuel type | diesel |
engine brand | Yuchai | power | 200hp |
Dongfeng 12m3 oil transport truck body parameters:
oil tank effective volume 12.17m3
oil tank diameters 5000*2100*1450mm
material Q235, thickness 5mm
rear fender ground clearance 460mm
with oil pumping in and pumping out system, whole set of European standard fuel connectors

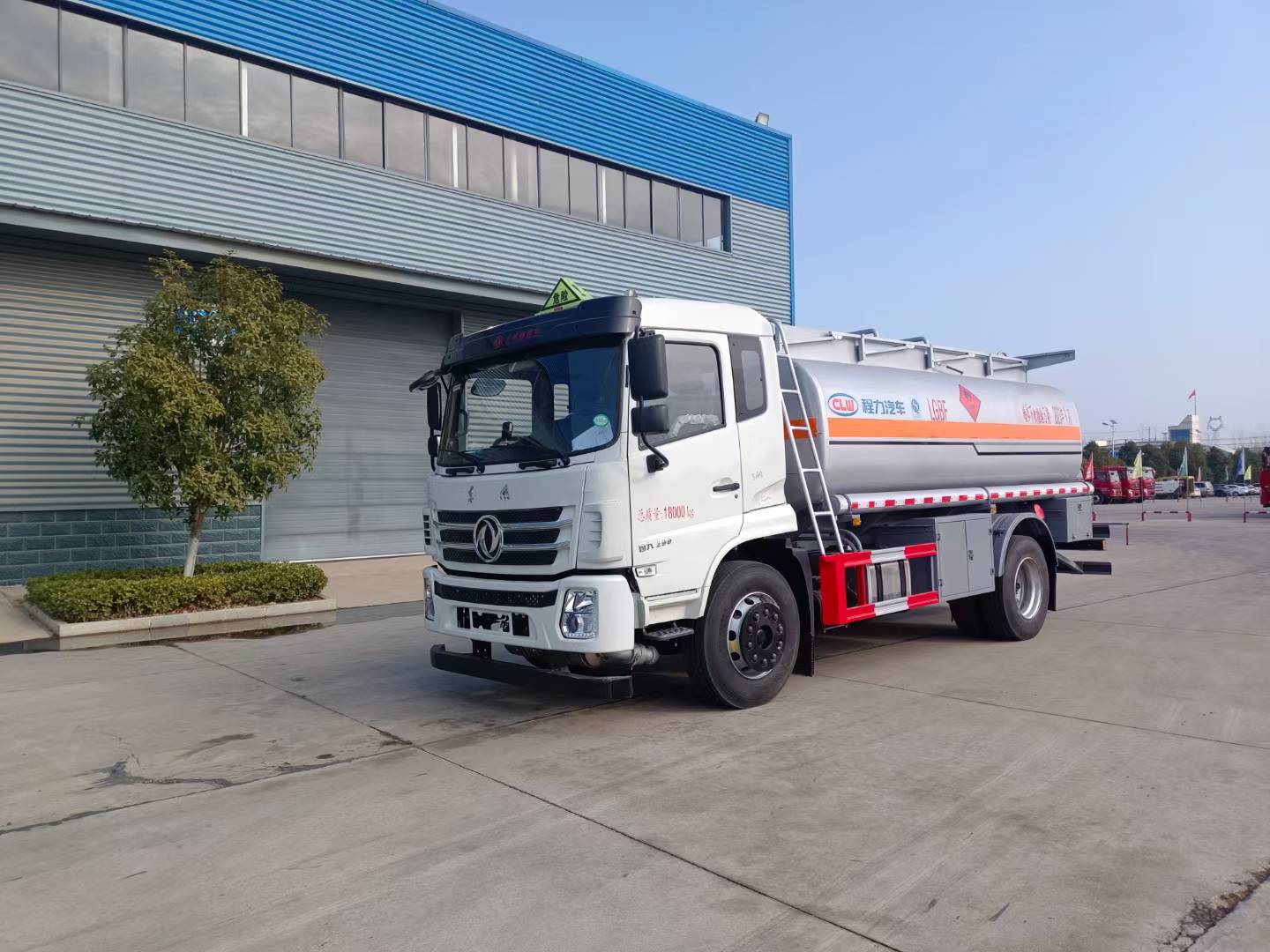

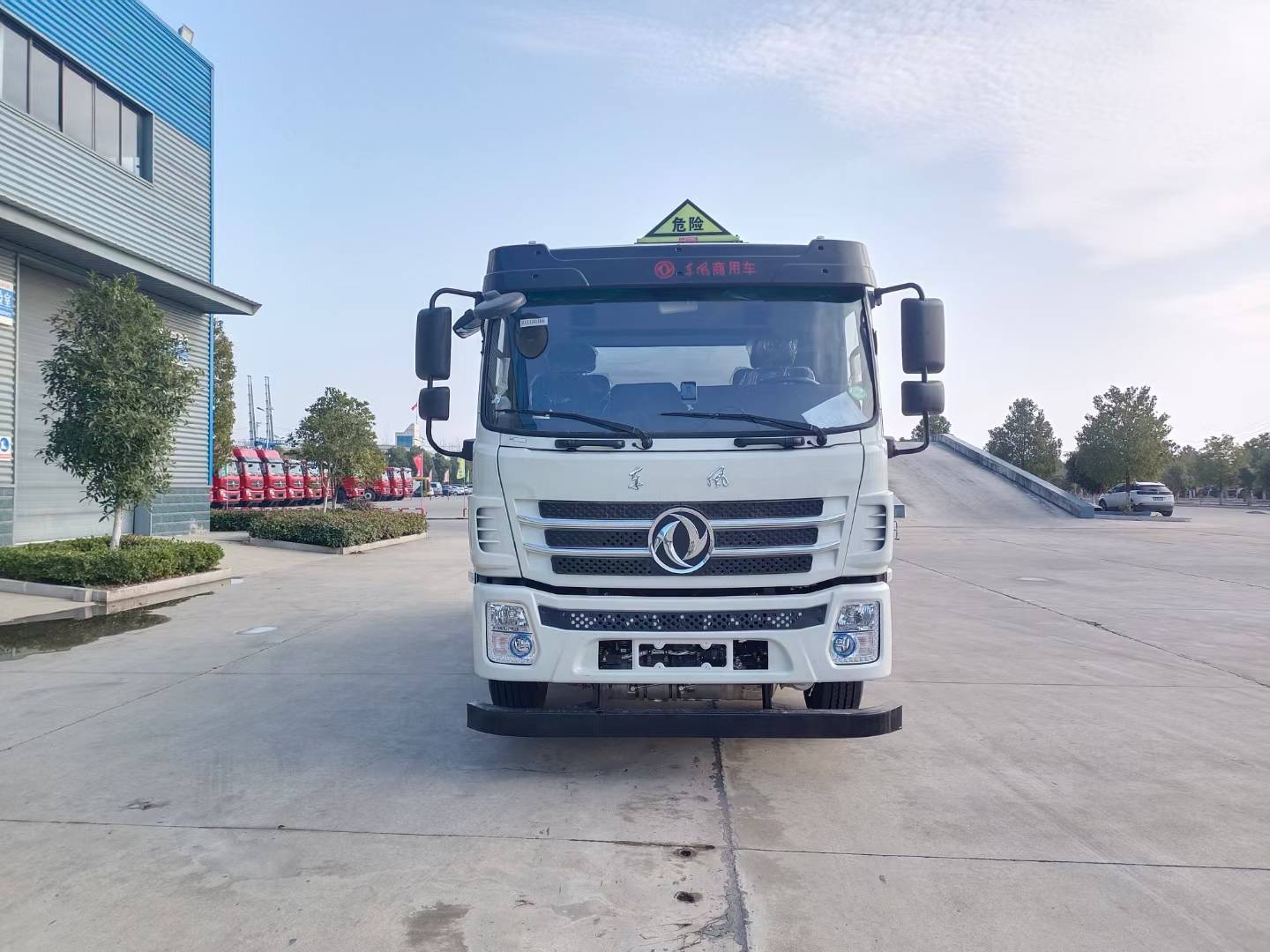

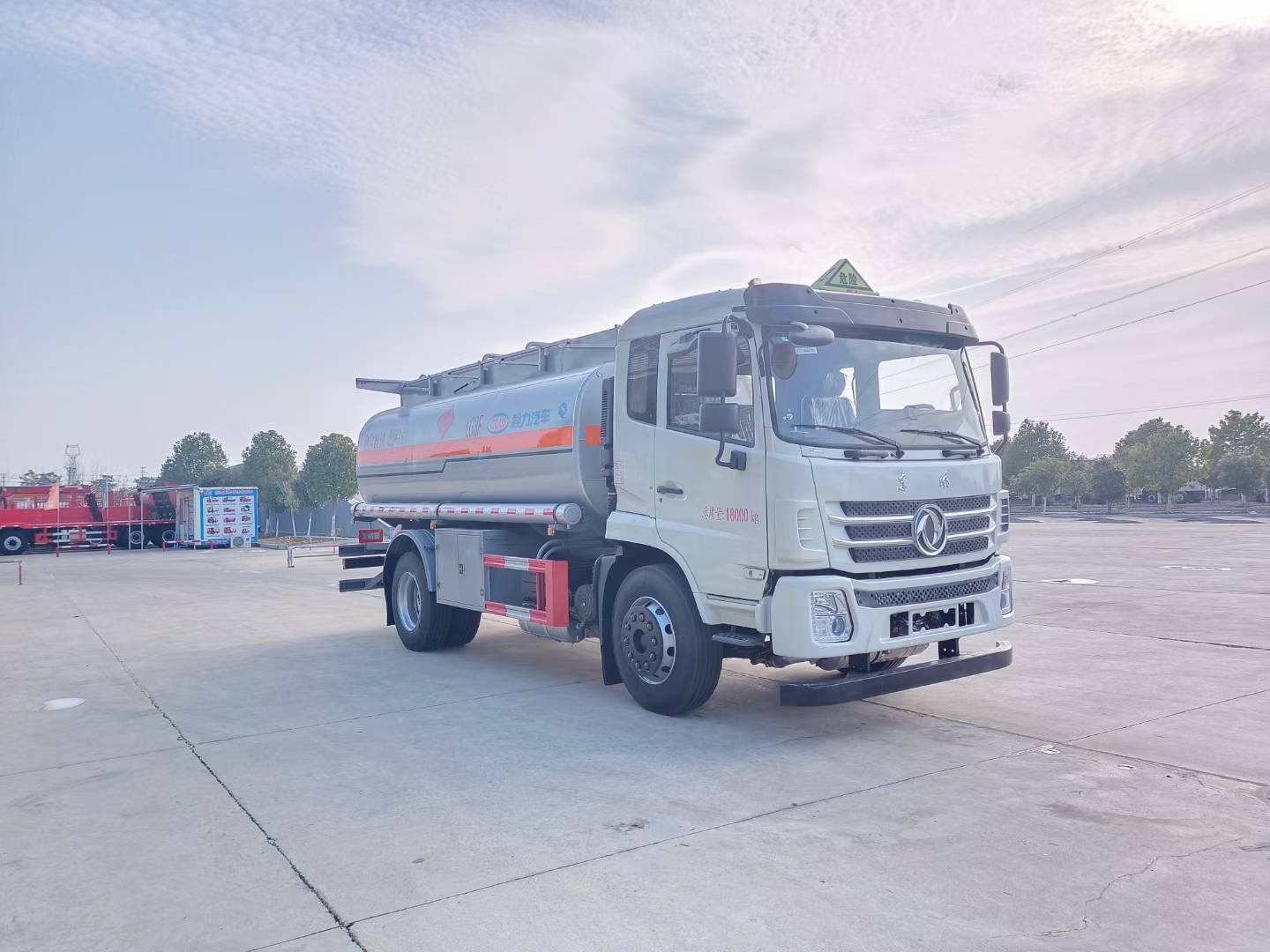

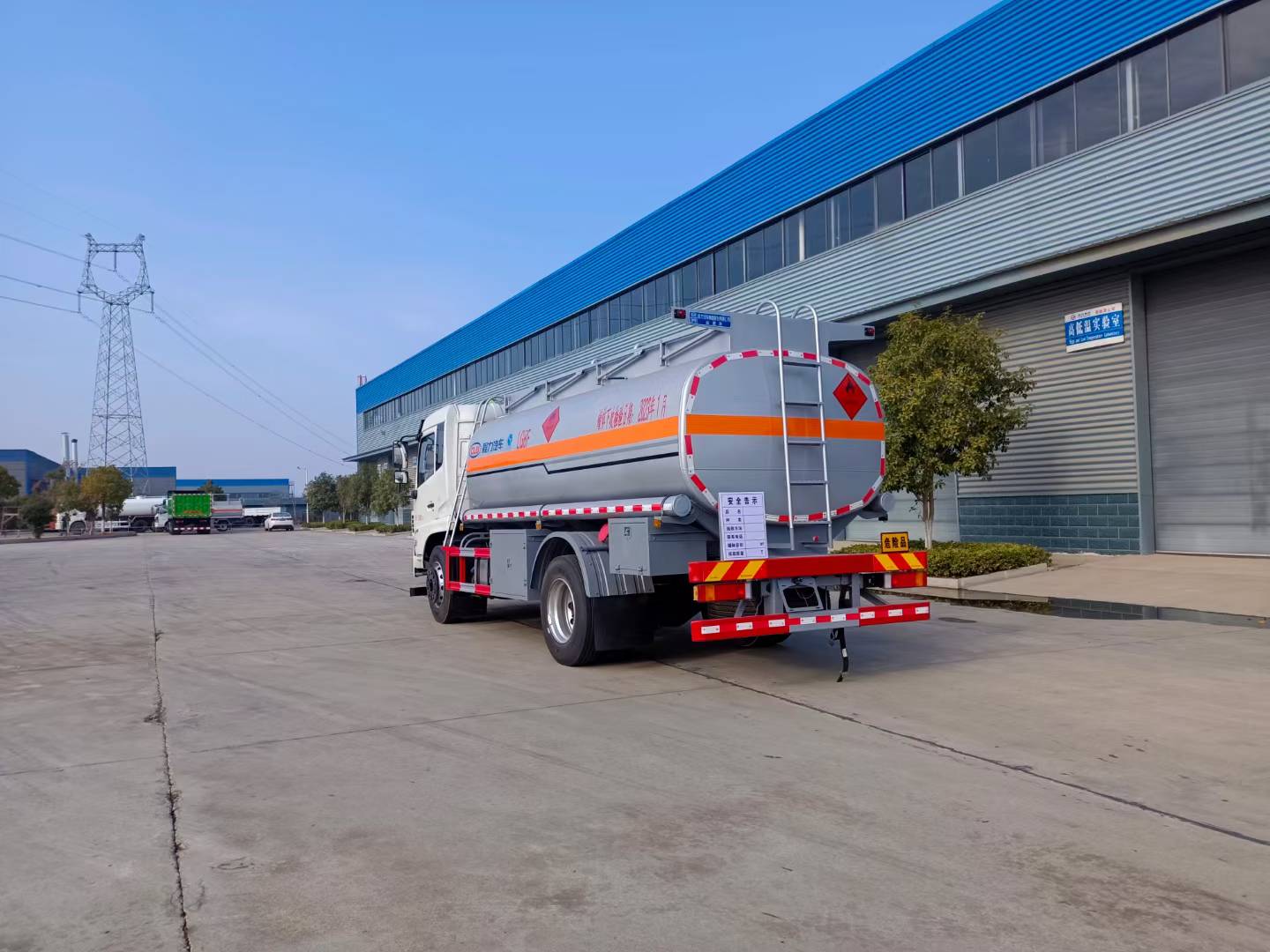

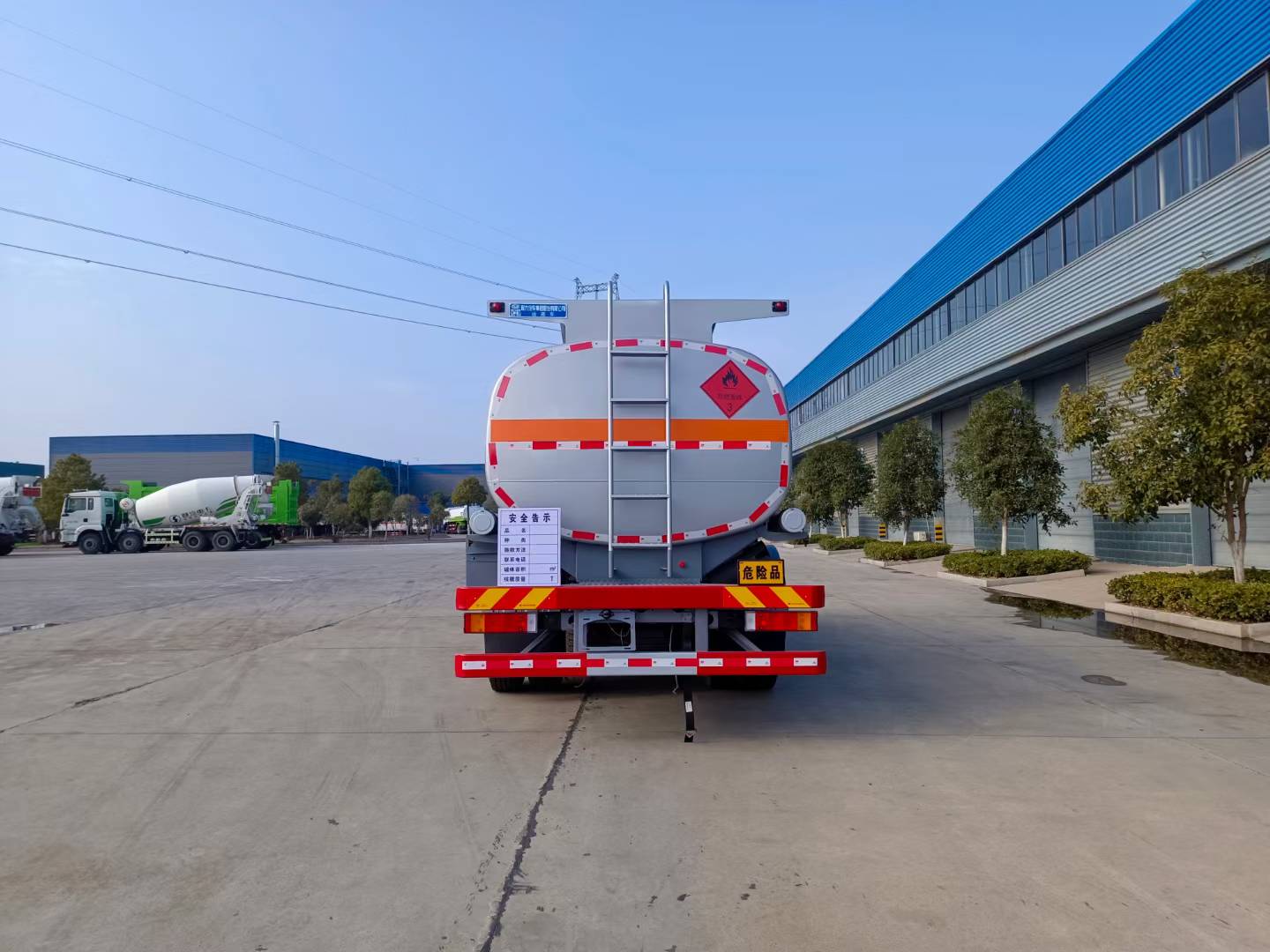

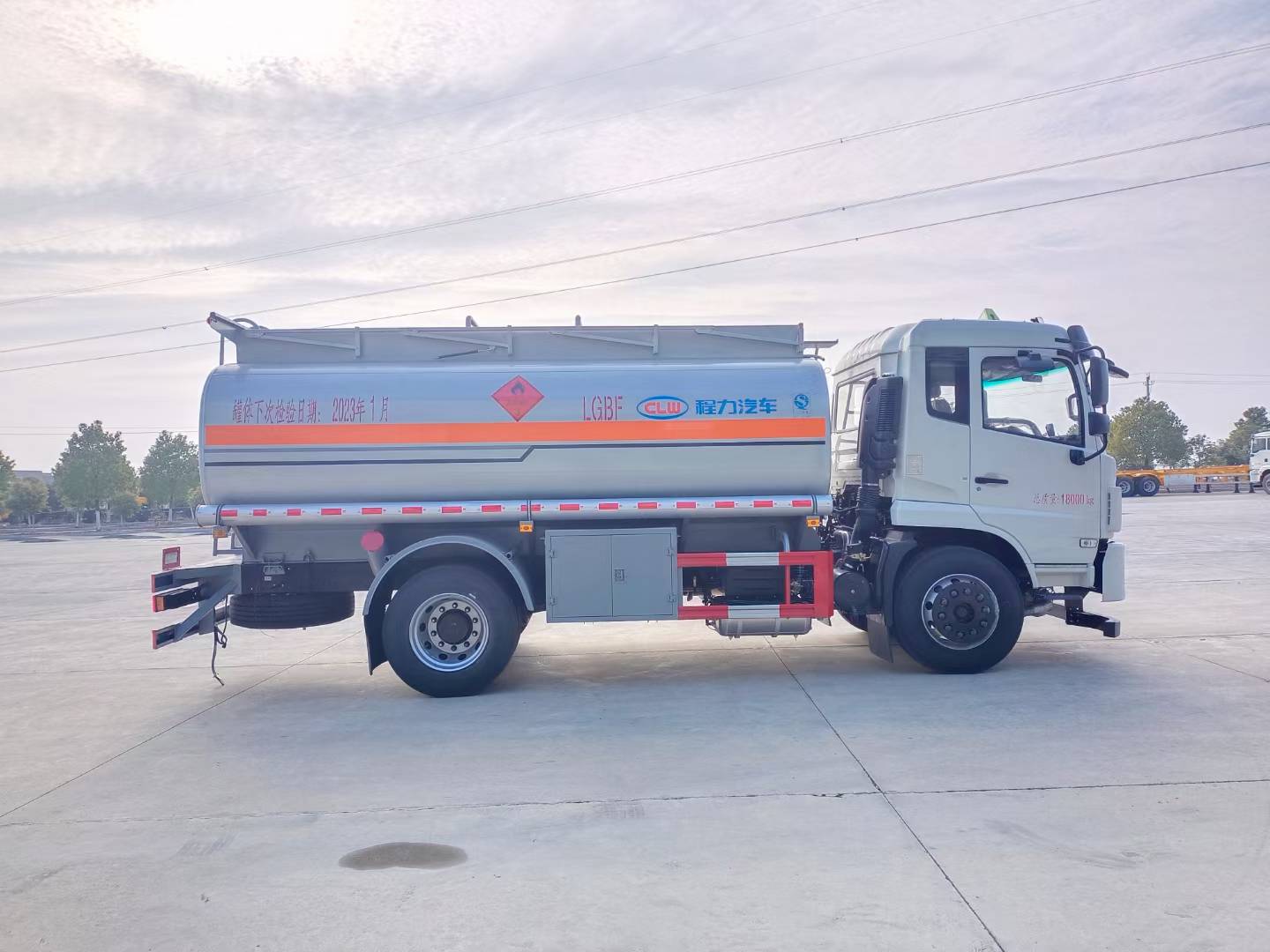

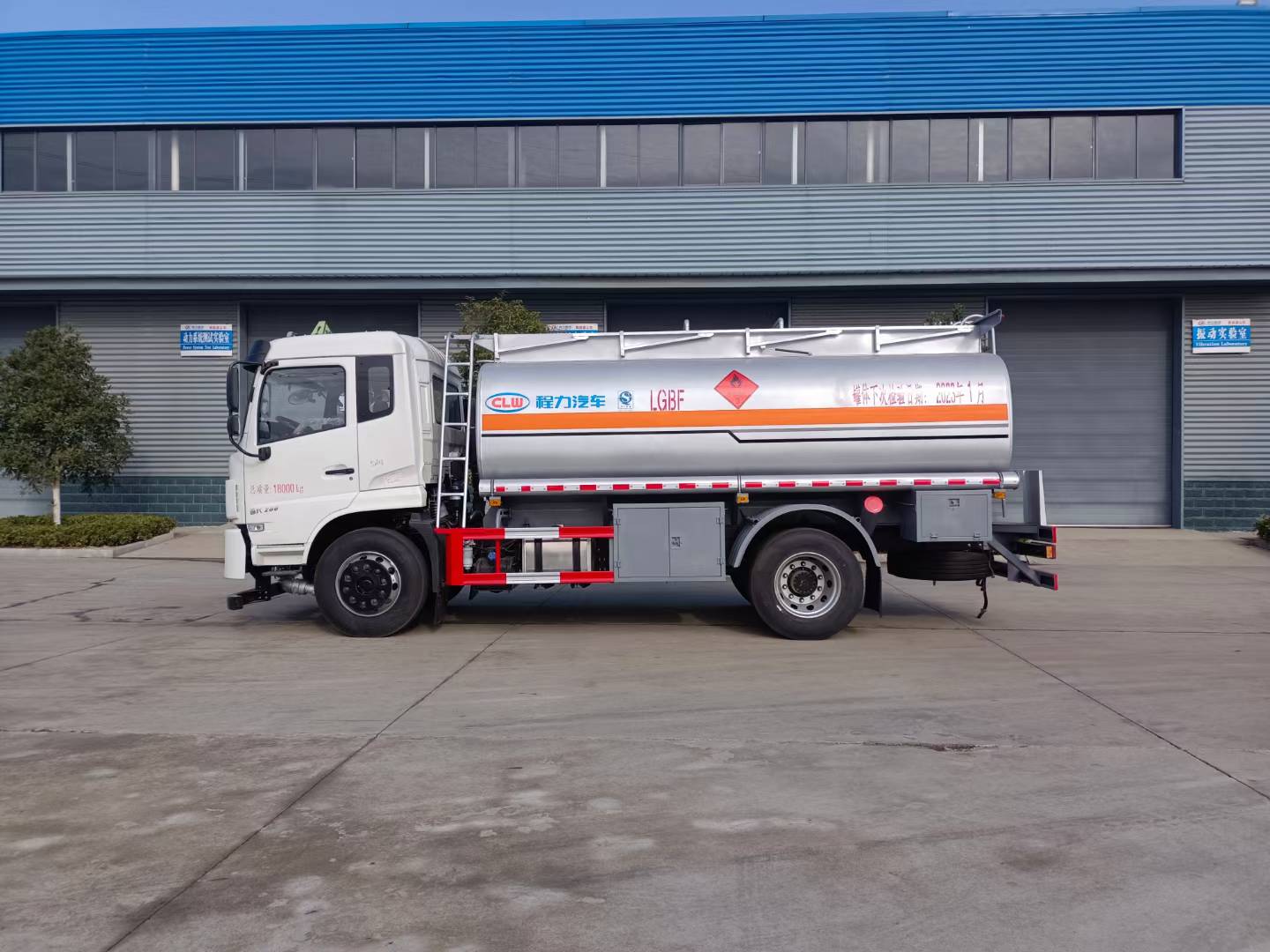

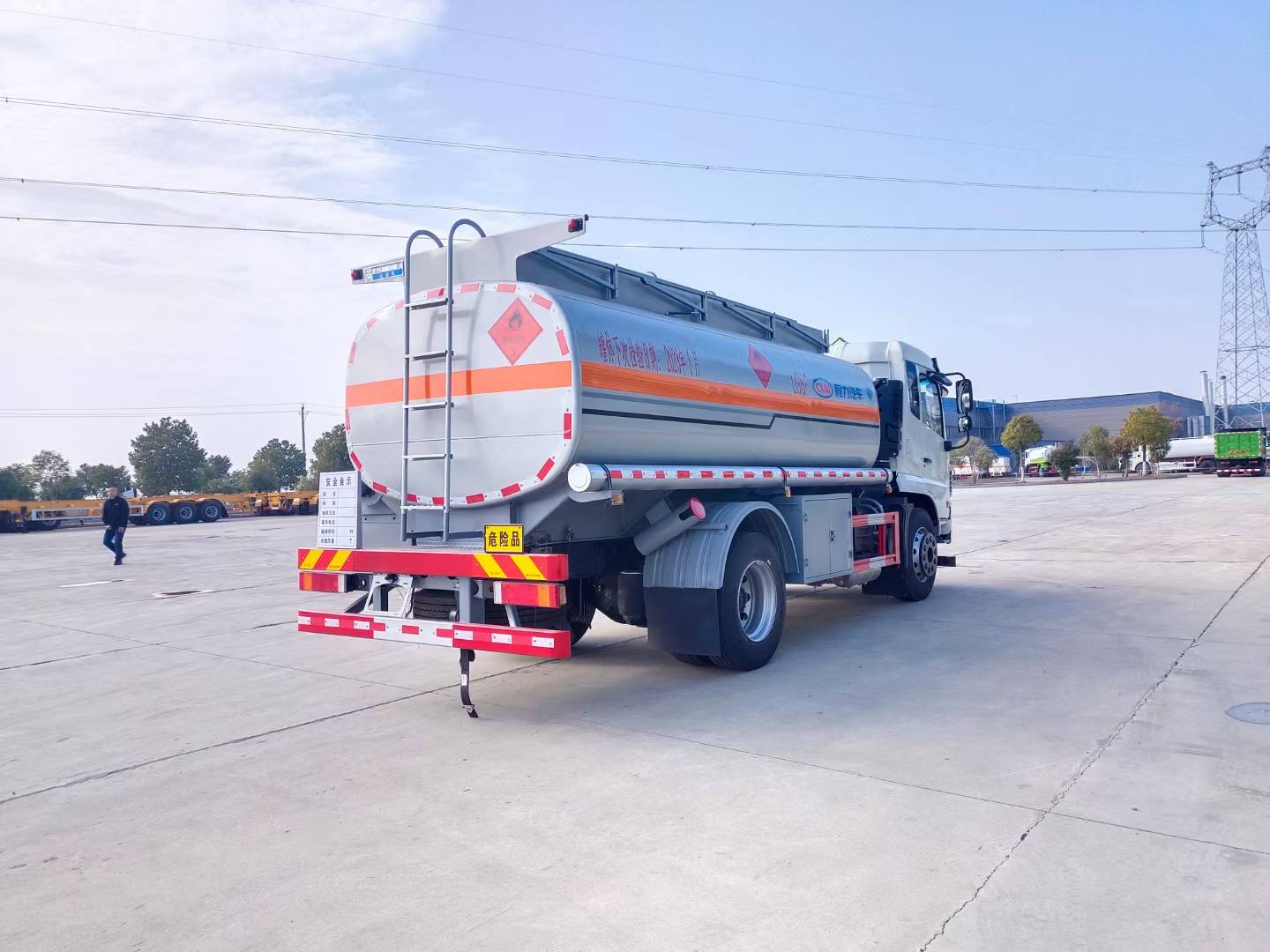

More pictures of the Dongfeng 12m3 oil transport truck:
