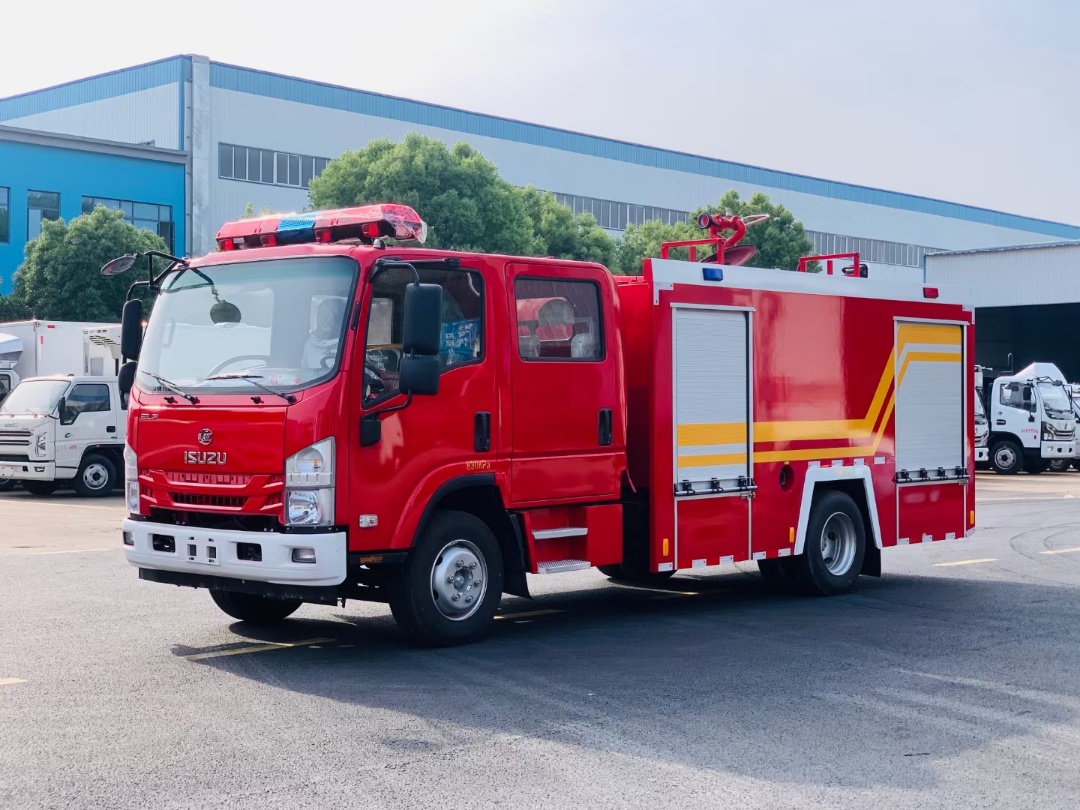

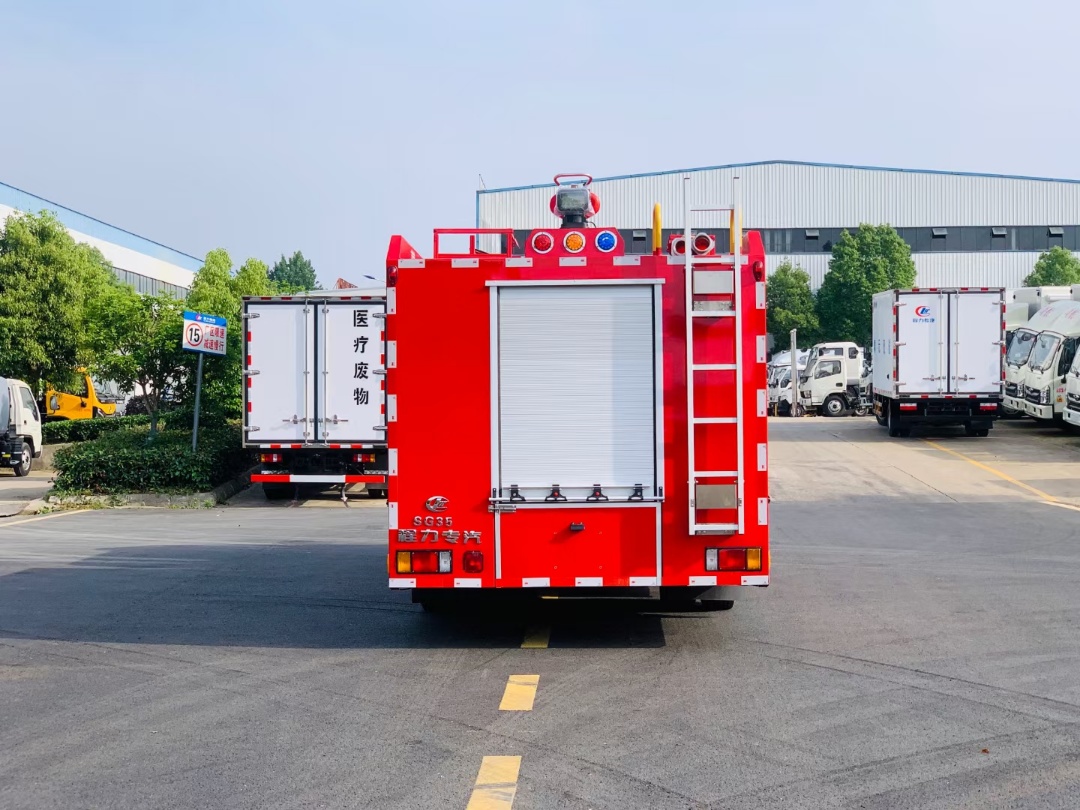

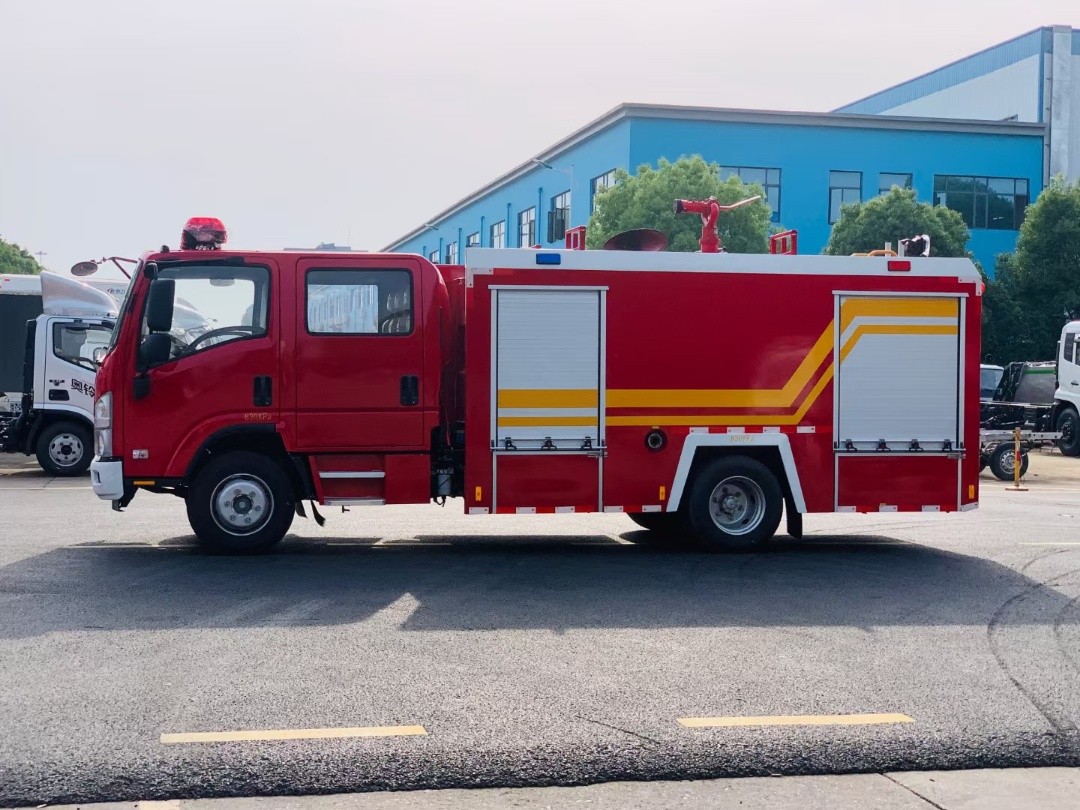

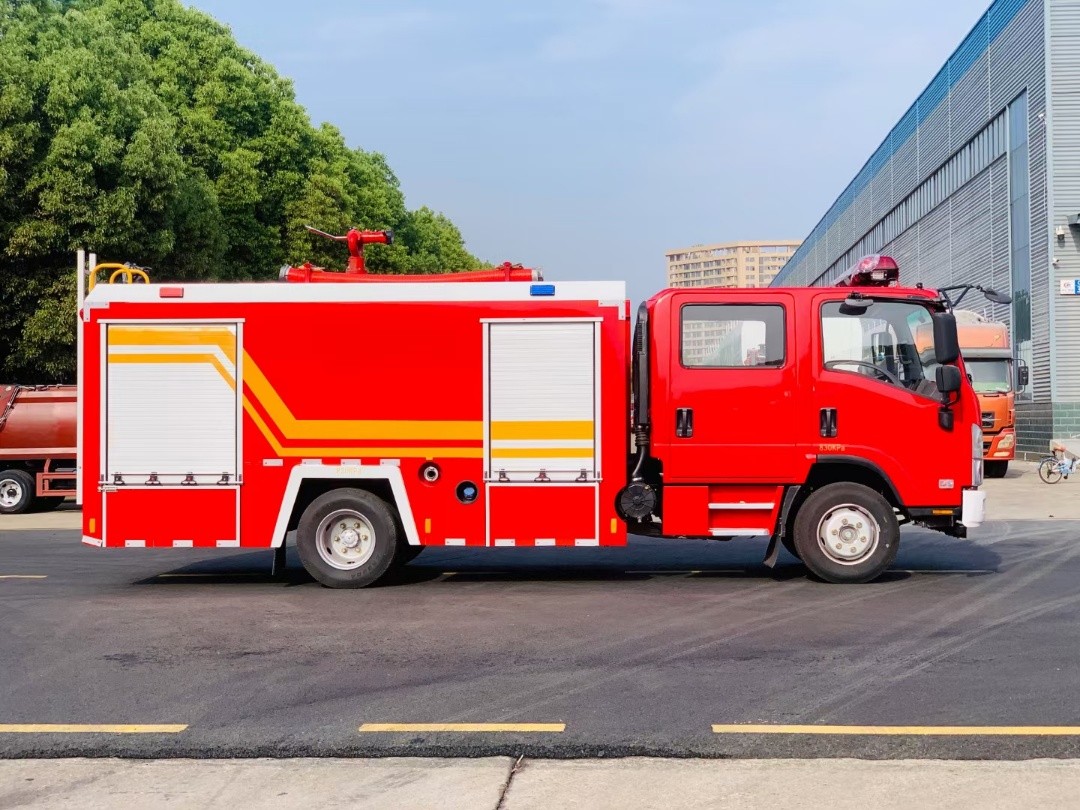

The ISUZU 3.5t water tank fire truck adopts ISUZU 4HK1-TCG61 engine, ISUZU MLD 6-gears transmission box, the front axle loading capacity is 4T, the rear axle loading capacity is 7T, standard tyre size is 235/75R17.5.
whole truck parameters of the ISUZU 3.5t water tank fire truck:
| model | CLW5100GXFPM35/QL | outer dimensions | 6990*2200*2950mm |
| GVW | 10200KG | rated loading capacity | 3550kg |
| curb weight | 6200kg | axle loading capacity | 3500/6700kg |
| front/rear suspension | 1110/2065mm | passengers | 3+3 |
| max speed | 100km/h | approach/departure angle | 17/11° |
Chassis parameters of the ISUZU 3.5t water tank fire truck:
| chassis model | QL1110ANKAY | axle number | 2 |
| tyre number | 6 | wheelbase | 3815mm |
| tyre size | 235/75R17.5 | front gauge | 1680mm |
| rear gauge | 1650mm | leaf spring number | 8/10+6 |
| fuel type | diesel | emission standard | EURO 6 |
| engine | 4HK1-TCG61 | power | 139KW |
ISUZU 3.5t water tank fire truck body parameters:
water tank: volume 3.550m3, the front part size is 930*950*1210mm, the rear part size is 1020*2150*1210mm
foam tank: total volume 3.529m3, water tank volume is 2.5m3, water tank size 1000*2150*1210mm, foam tank volume 1.029m3, foam tank size 930*950*1210mm

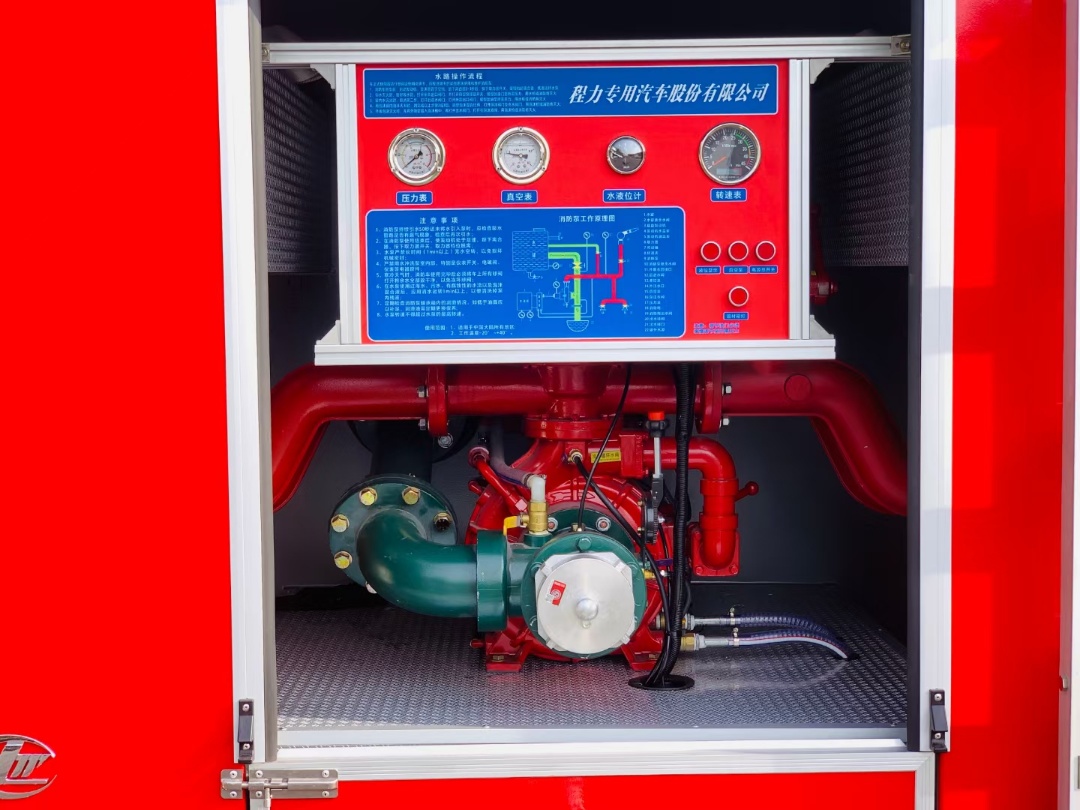

tank body material carbon steel, the fire pupm is CB10/30, fire cannon PS30, foam fire cannon is PL24.
