Origin: Suizhou China
Brand: CLW
Emission standard: EURO 2/3/4/5/6
Steering wheel: LHD/RHD
Chassis: Isuzu/ Sinotruck/Shacman/Dongfeng/CLW/JAC/Foton/JMC
Dongfeng Tuyi water tank fire truck parameters:
model | CLW5040GXFSG10/DF | outer diameters | 5695*1780*2390mm |
GVW | 4050kg | rated loading capacity | 850kg |
curb weight | 2825kg | axle loading capacity | 1600/2450kg |
front/rear suspension | 1181/1514mm | passengers | 2+3 |
max speed | 100km/h | appraoch/departure angle | 22/16° |
Dongfeng Tuyi water tank fire truck chassis parameters:
model | EQ1040D16DC | brand | Dongfeng |
axle number | 2 | tyre number | 6 |
wheelbase | 3000mm | tyre size | 6.00R15 |
front/rear gauge | 1369/1242mm | leaf spring number | 3/5 |
engine brand | Quanchai | engine power | 95hp |
Dongfeng Tuyi water tank fire truck body configurations:
The tank volume is 0.850m3. The tank is made of high-quality carbon steel and undergoes internal anti-corrosion treatment. It is equipped with a full-power sandwich pump, a CB10/20 type fire pump, and a PS8/20 type fire cannon. The flow rate is 20L/s and the range is ≥ 45 meters. It has a long row of warning lights, a speaker, a strobe light, a rear lighting lamp, and an operation panel with Chinese labels. It also has a reserved radio power connector and a simple ladder frame on the vehicle roof.

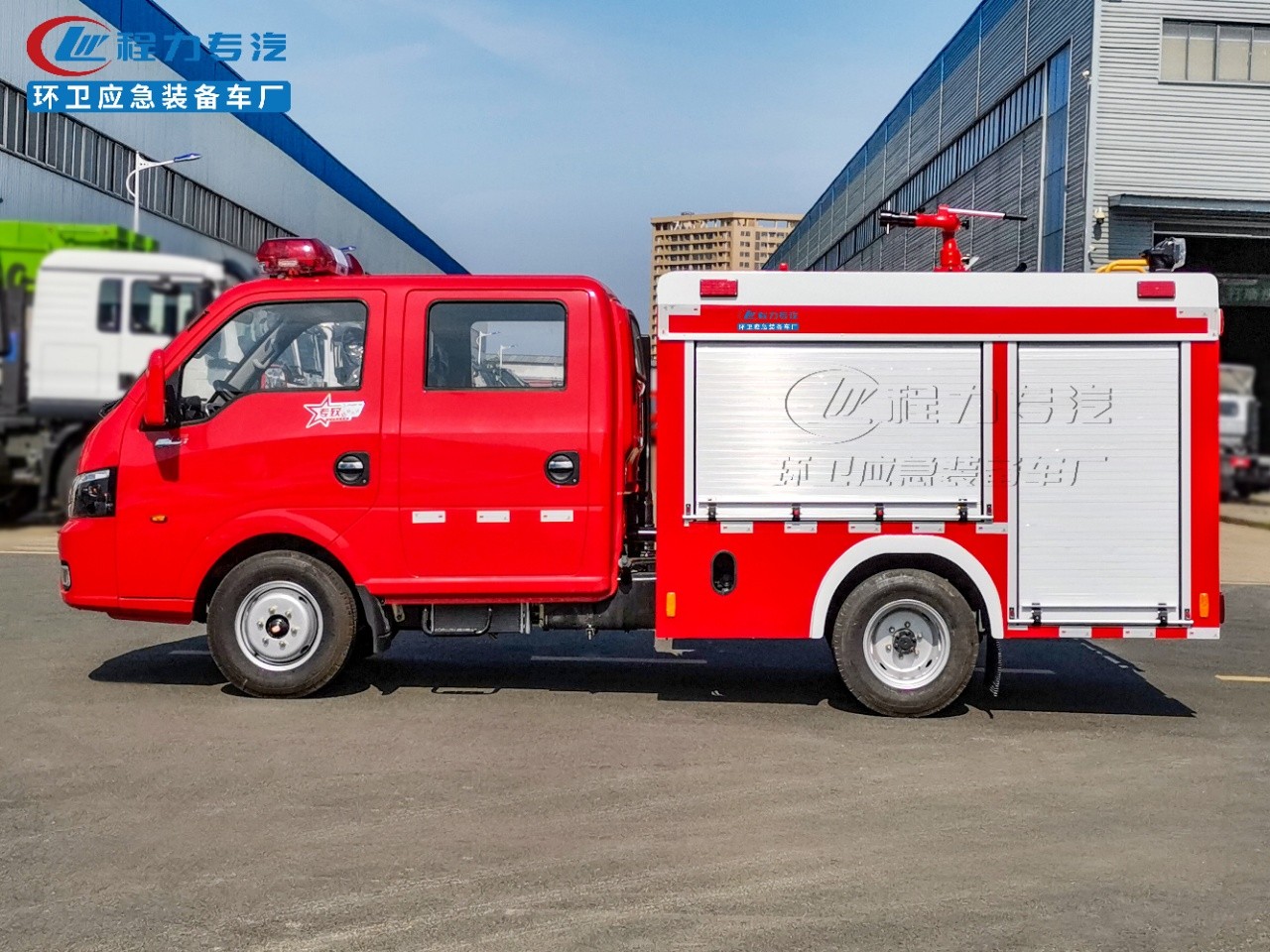

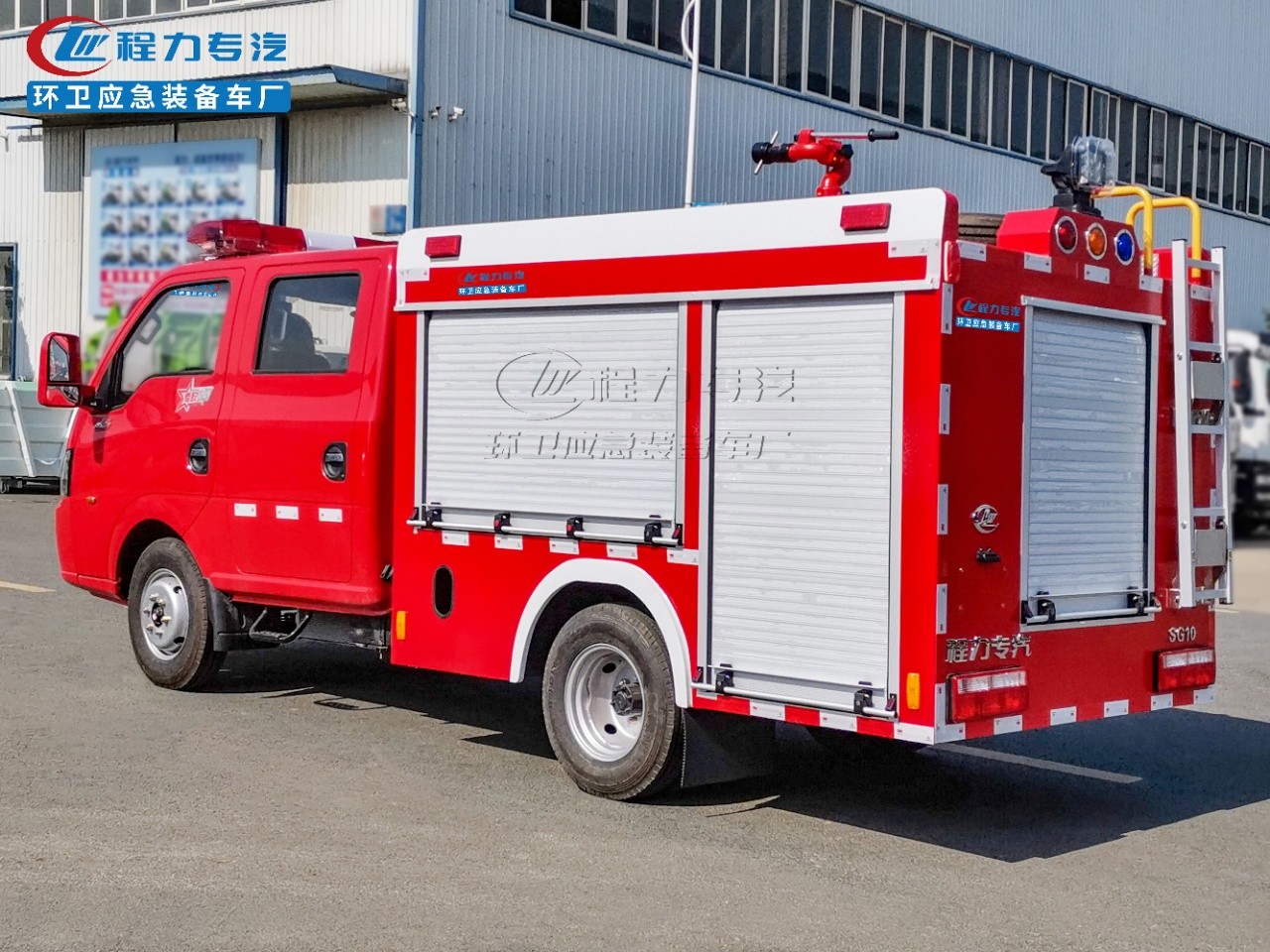

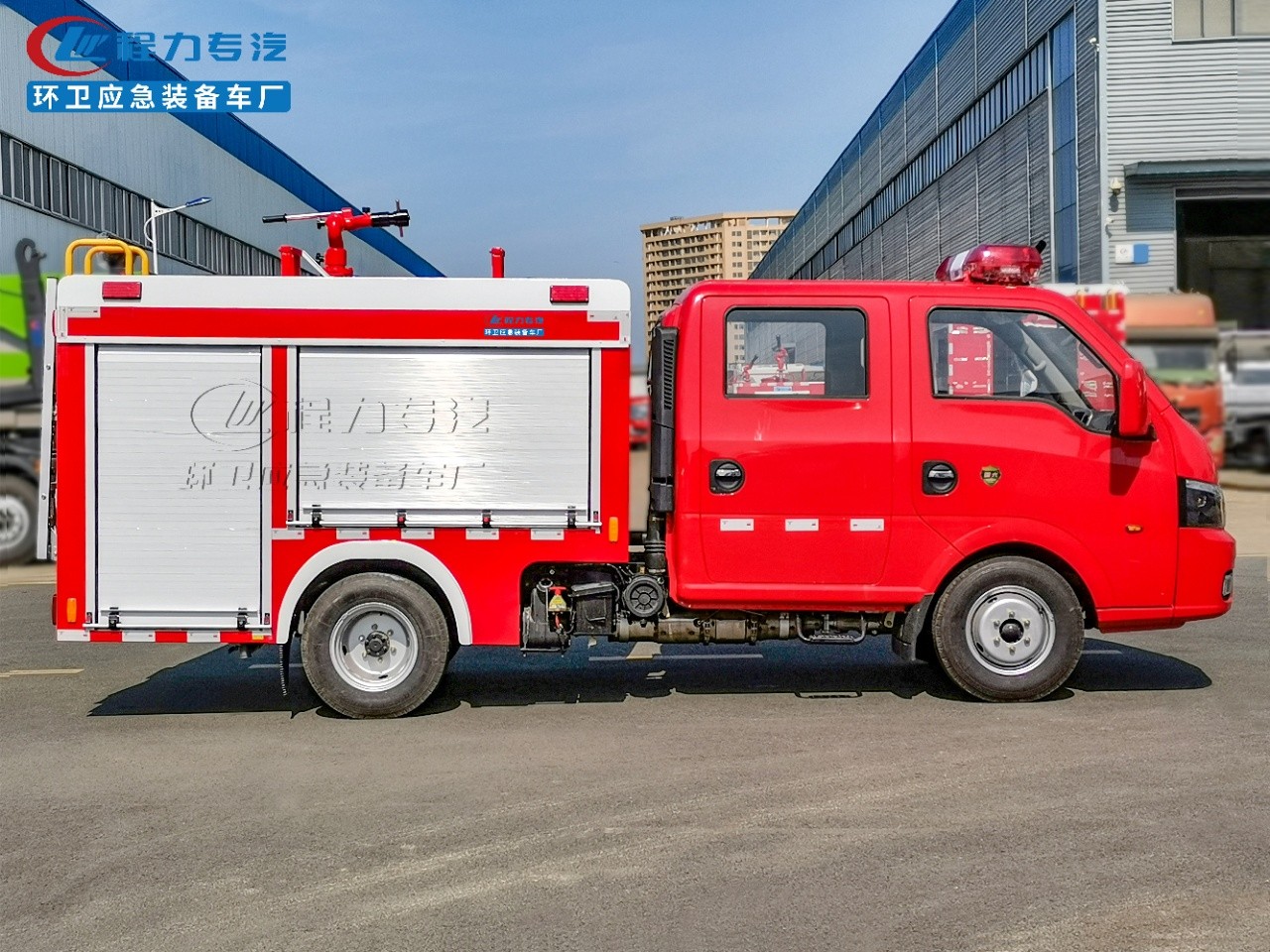

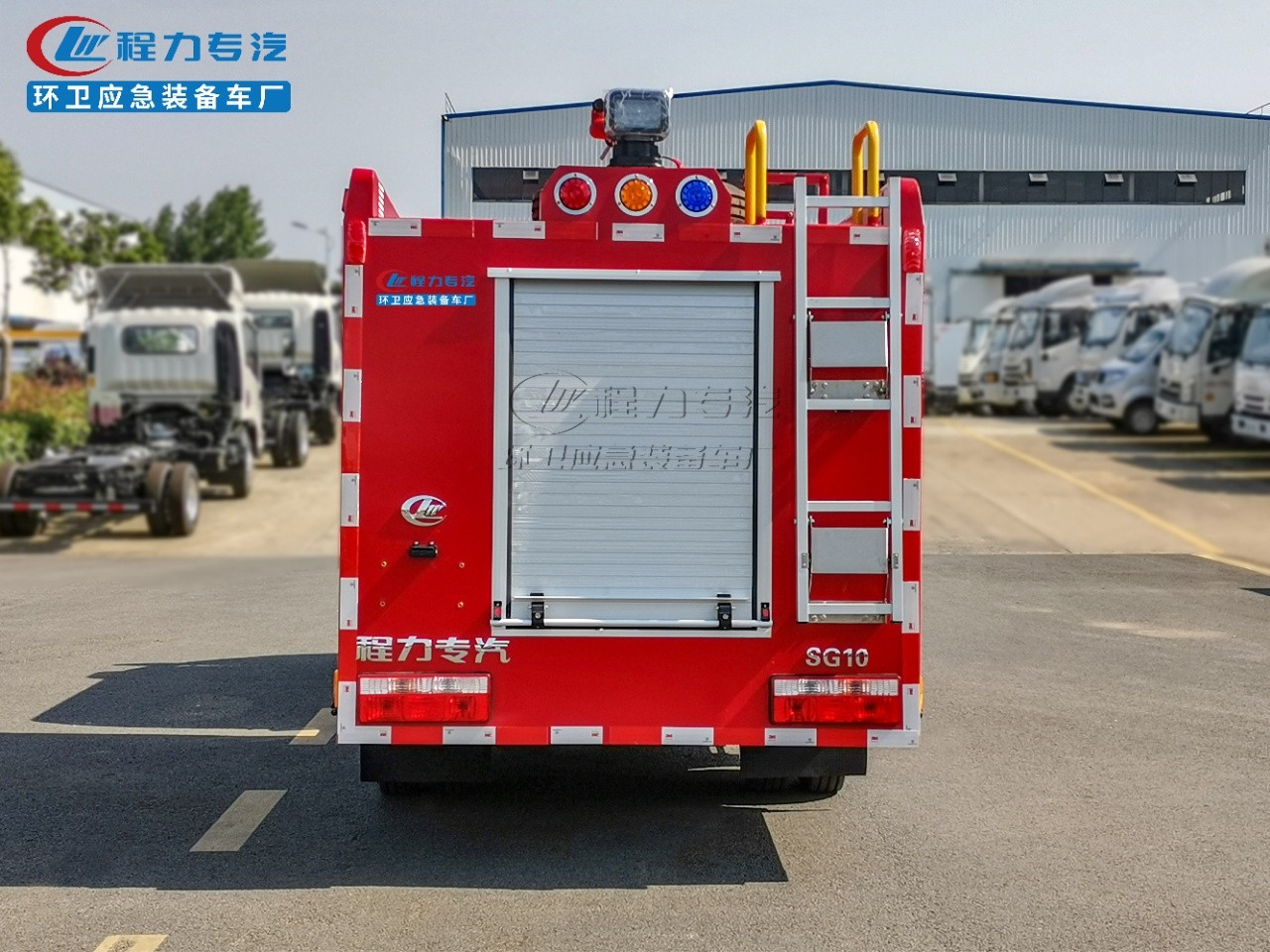

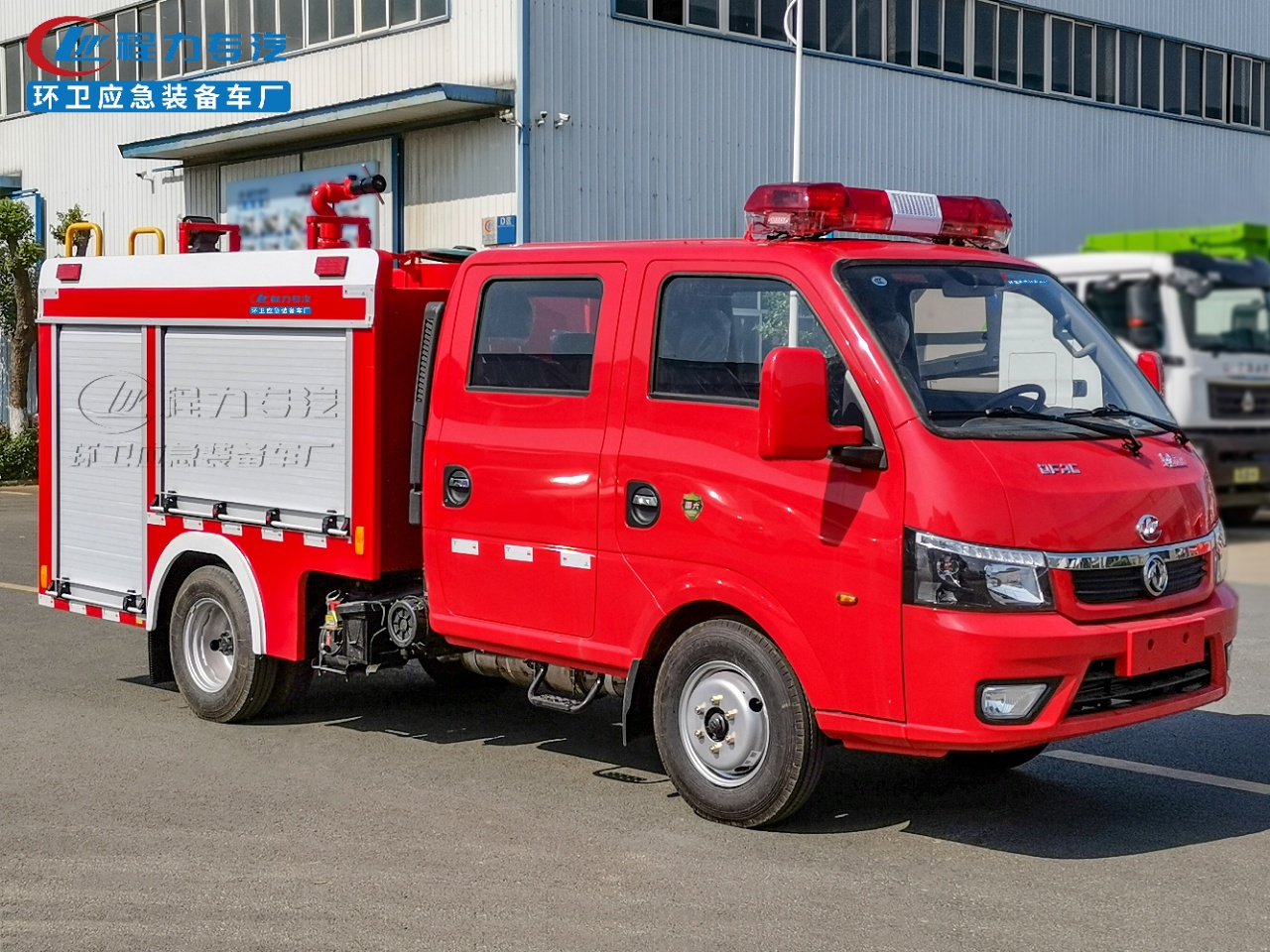

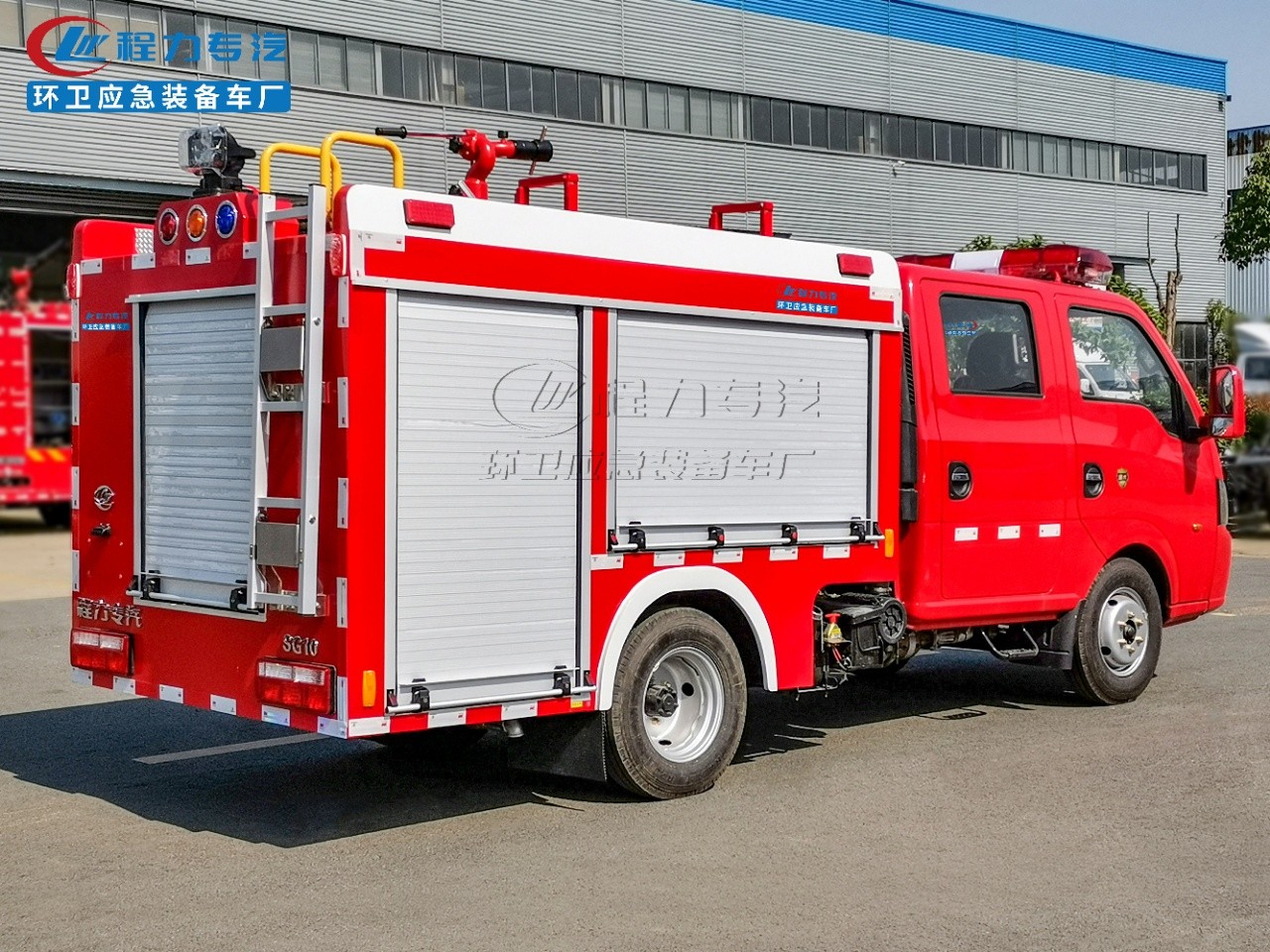

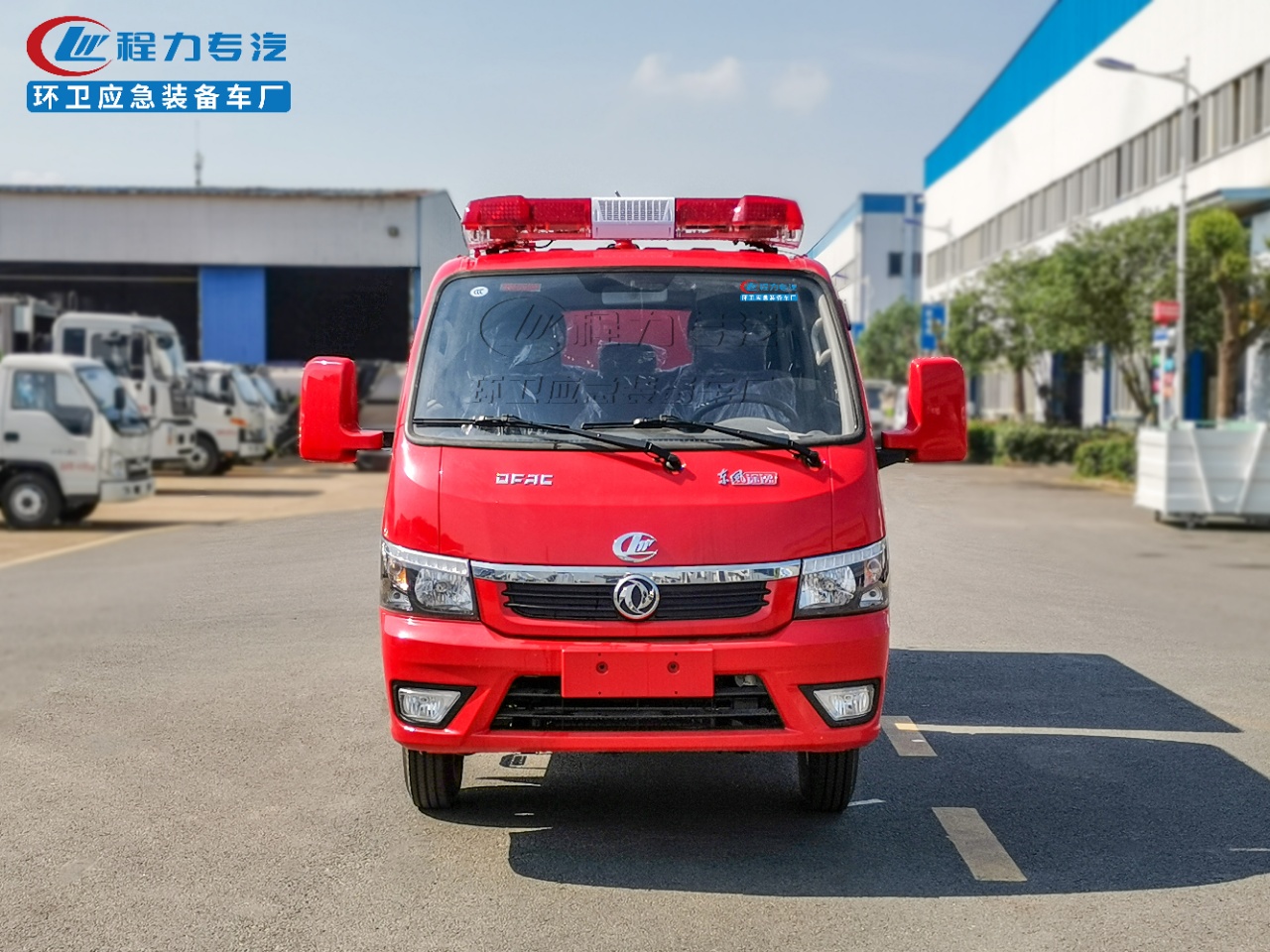

More pictures of the Dongfeng Tuyi water tank fire truck:
