Origin: Suizhou China
Brand: CLW
Emission standard: EURO 2/3/4/5/6
Steering wheel: LHD/RHD
Chassis: Isuzu/ Sinotruck/Shacman/Dongfeng/CLW/JAC/Foton/JMC
Dongfeng 4.8m3 foam tank fire truck parameters:
model | CLW5110GXFPM50/DF | outer diameters | 6960*2200*2810mm |
GVW | 11300kg | rated loading capacity | 4800kg |
curb weight | 6050kg | axle loading capacity | 3500/7800kg |
front/rear suspension | 1130/2030mm | passengers | 3 |
max speed | 100km/h | approach/departure angle | 26/11° |
Dongfeng 4.8m3 foam tank fire truck chassis parameters:
| EQ1125SJ8CDC | brand | Dongfeng |
axle number | 2 | tyre number | 6 |
wheelbase | 3800mm | tyre size | 245/70R19.5 |
front/rear gauge | 1745/1630mm | leaf spring number | 8/10+7 |
engine | 170hp | fuel type | diesel |
Dongfeng 4.8m3 foam tank fire truck body configurations:
The total volume is 4.8m3, the water tank 3.2m3, and is made of high-quality carbon steel plates. It is treated for corrosion prevention inside.
The foam tank is1.6m3 and is made of high-quality 304 stainless steel.
It is equipped with a CB10/30 type fire pump, PL8/24 type fire cannon, a full-power sandwich drive mechanism, a long row of warning lights, a speaker, a flashing light, a rear lighting lamp, and an operation panel with Chinese labels.
The fire truck roof has a simple ladder frame.
The appearance is novel and imposing. It is suitable for urban emergency management departments, township governments for emergencies, forest fire fighting, tourist attractions, campuses, etc. for fire rescue.

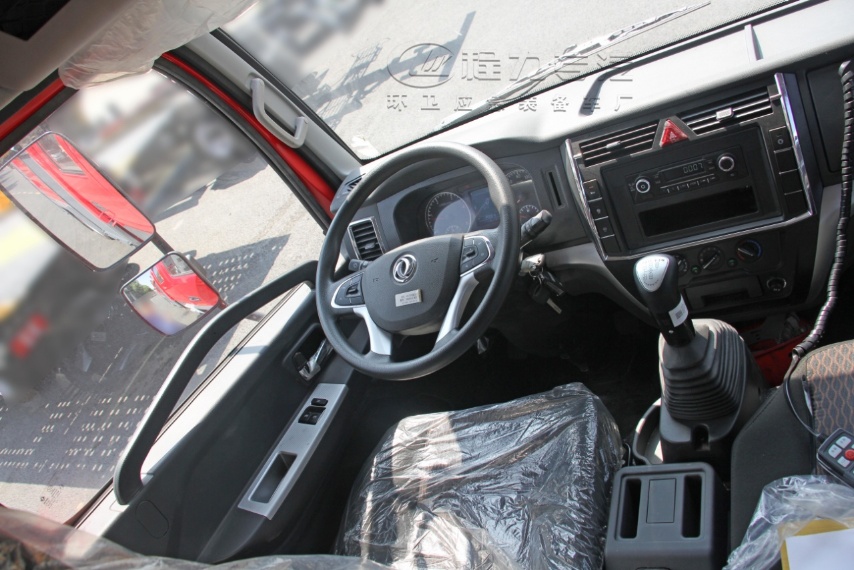

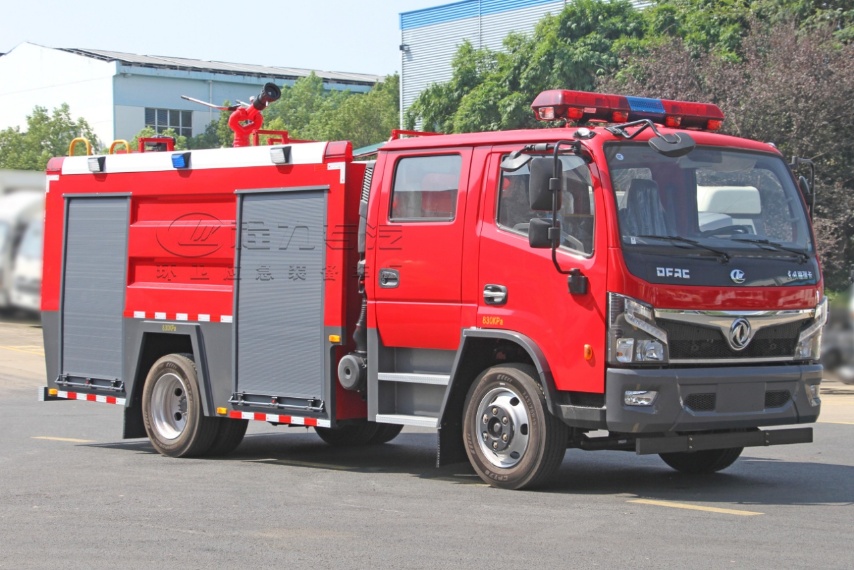

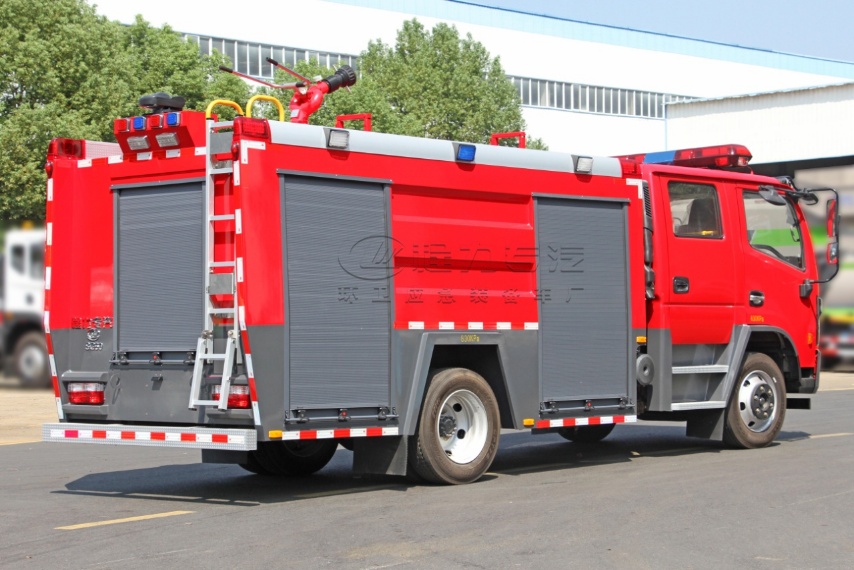

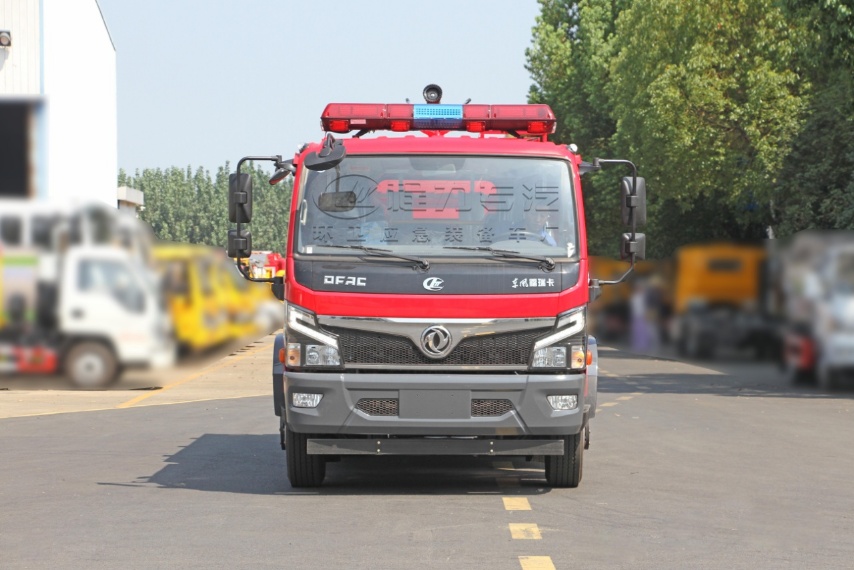

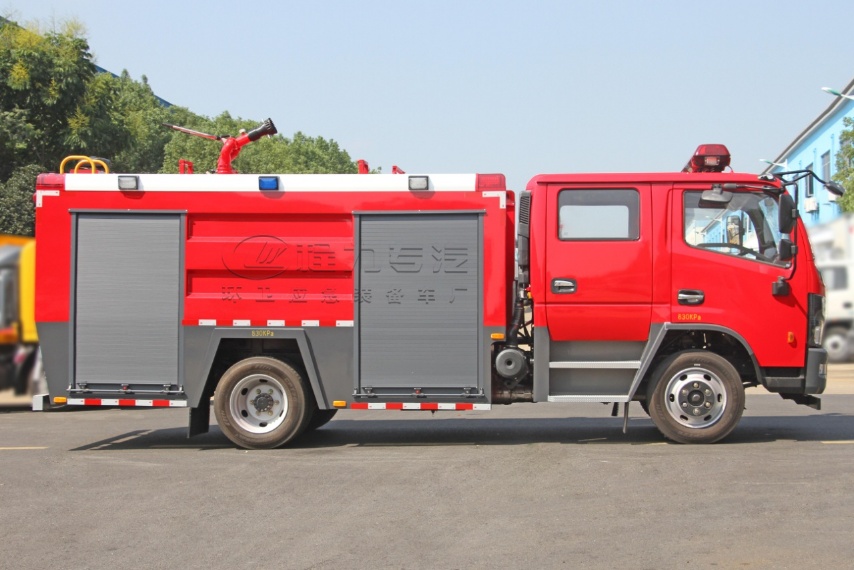

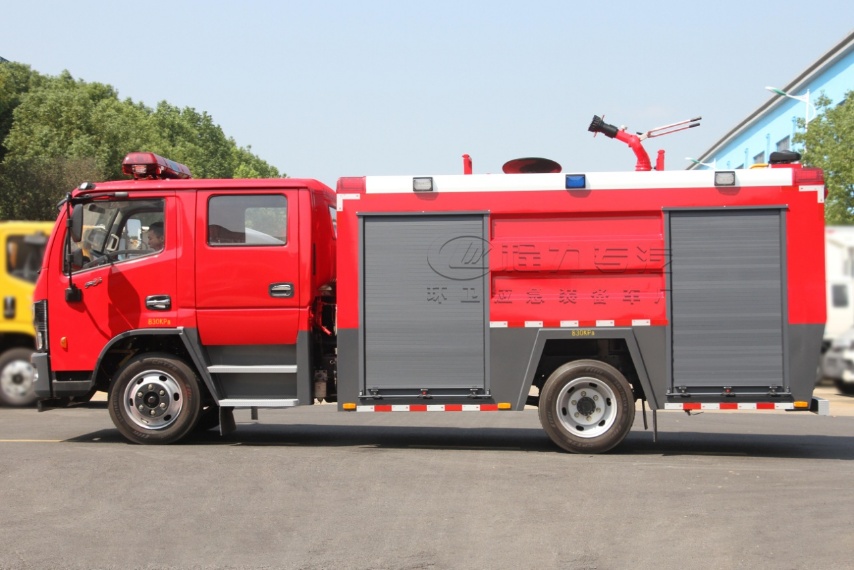

More pictures of the Dongfeng 4.8m3 foam tank fire truck:
