Origin: Suizhou China
Brand: CLW
Emission standard: EURO 2/3/4/5/6
Steering wheel: LHD/RHD
Chassis: Isuzu/ Sinotruck/Shacman/Dongfeng/CLW/JAC/Foton/JMC
+86 13329890945
+86 19813830308
+86 13329890945
+86 19813830308

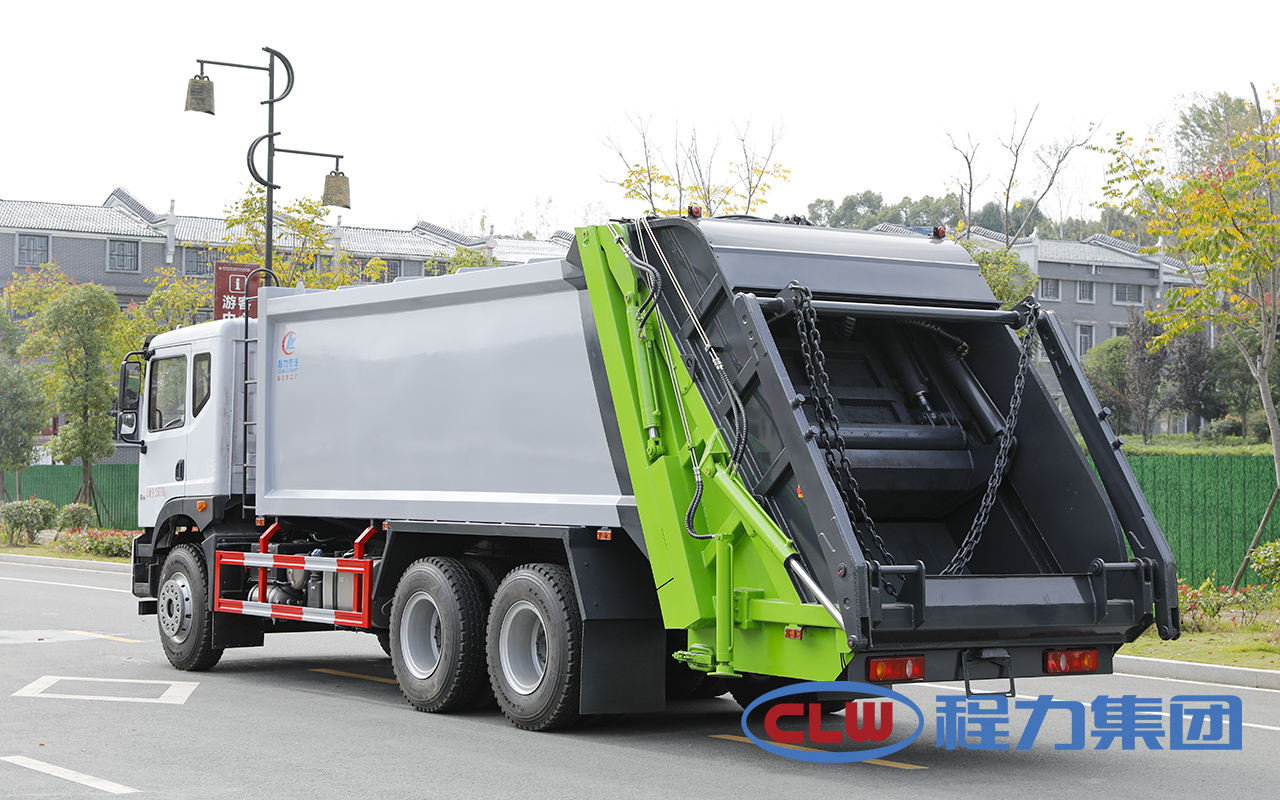

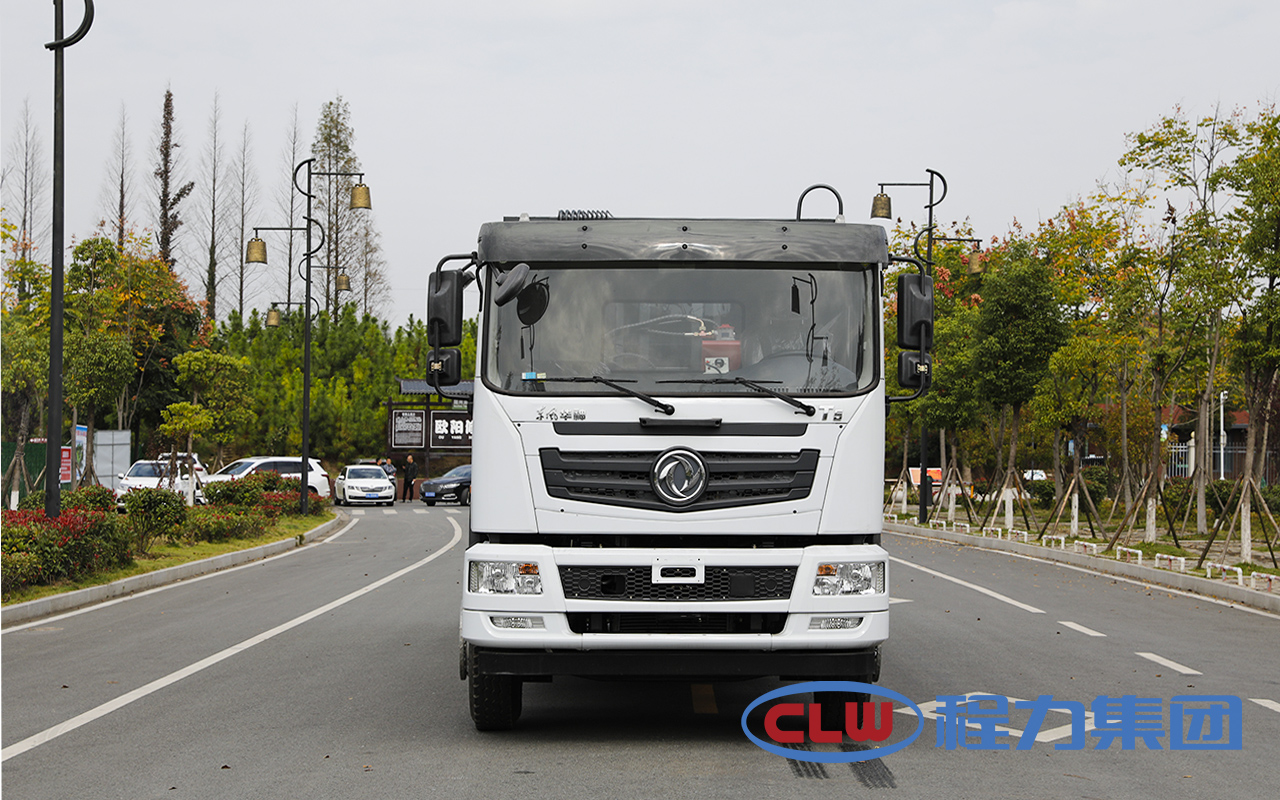

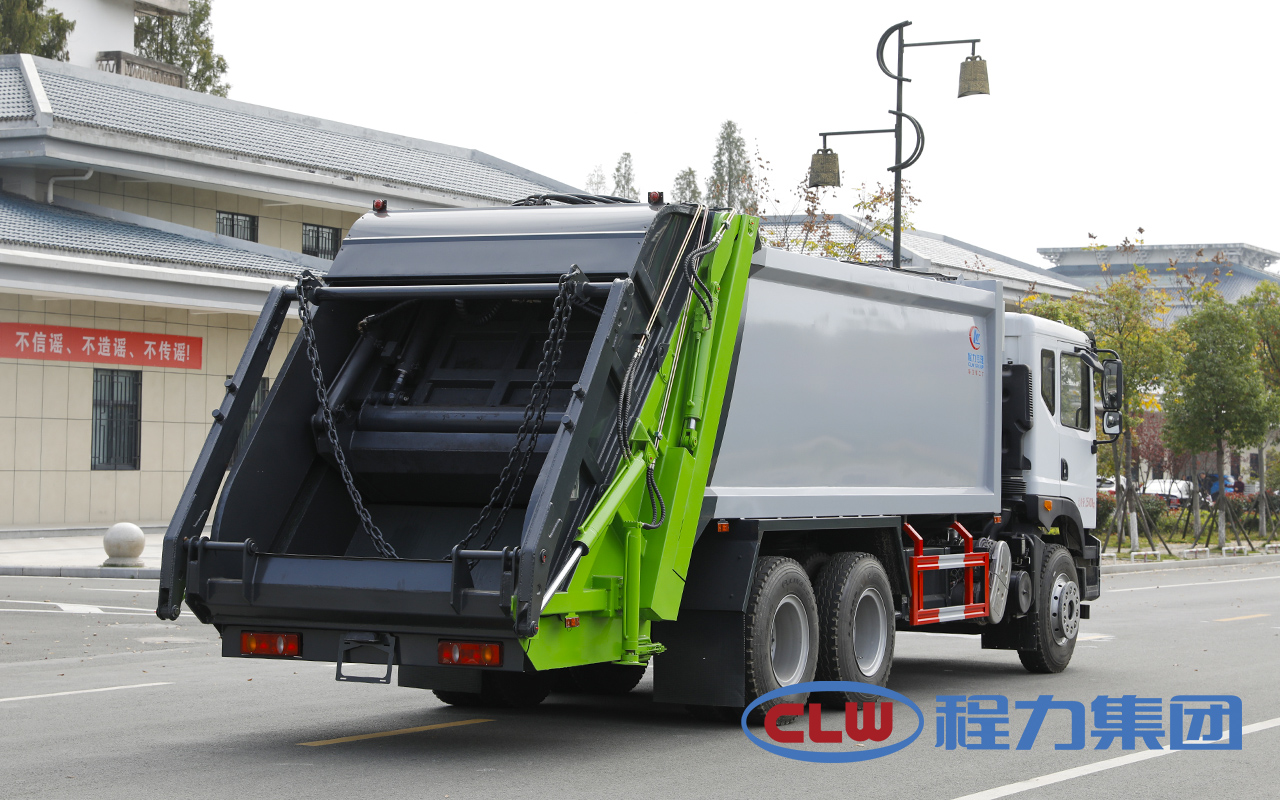

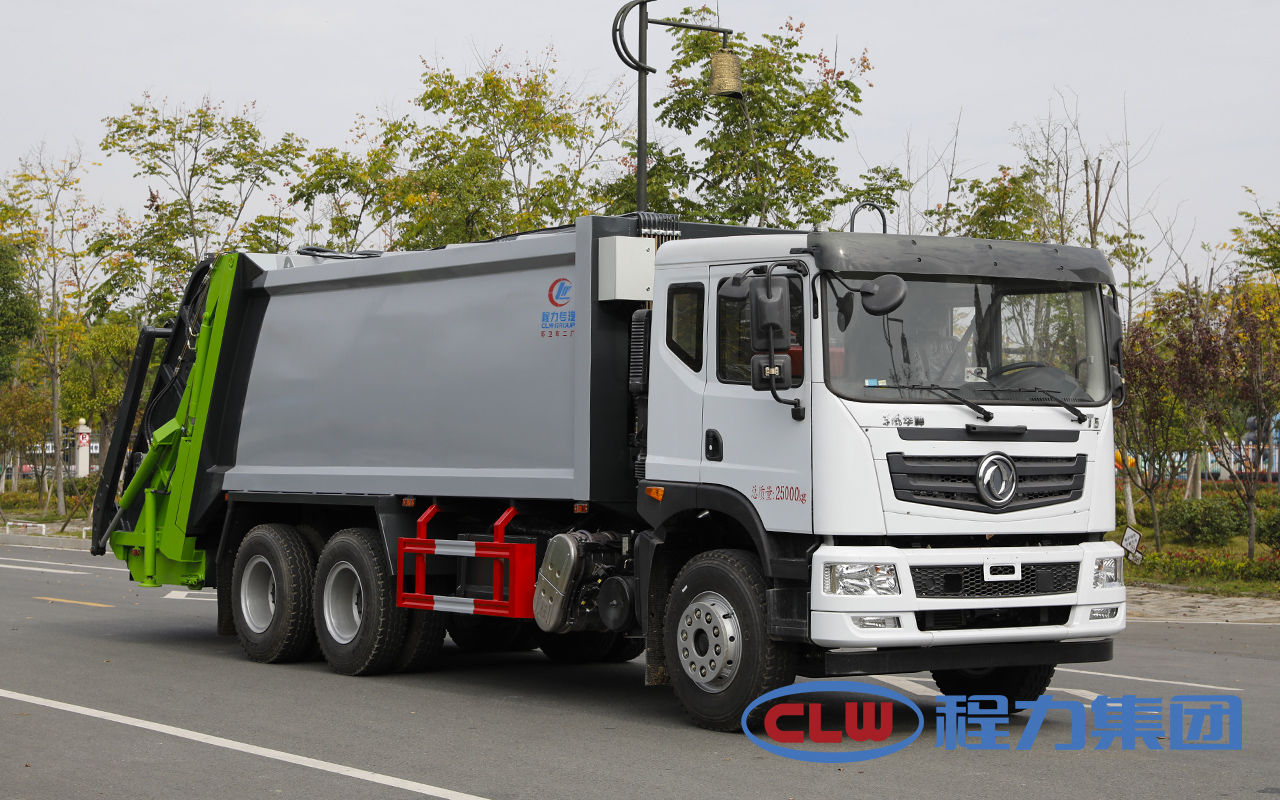

Parameters of the 20m3 garbage compactor truck:
GVW | 25000kg | truck body volume | 20m3 |
rated loading capacity | 10090kg | outer dimensions | 10500*2520*3300mm |
curb weight | 14780kg | approach/ departure angle | 25/20 ° |
axle number | 3 | passengers | 3 |
wheelbase | 4350+1350mm | front/rear suspension | 1450/3350mm |
max speed | 88km/h | tyre size | 11.00R20 18PR |
chassis model | EQ1250GL6DJ | chassis type | II |
tyre number | 10 | fuel type | diesel |
emission standard | EURO VI | engine power | 199KW |
The garbage compactor truck body parameters:
truck body effective volume | 20m3 | body shape | arc shape |
body thickness | side plate 5mm bottom plate 6mm | rear loader effective volume | 1.4m3 |
cycling time | ≤25s | garbage discharging time | ≤45s |
control method | manual + automatic | hydraulic system max pressure | 18MPa |
multiway valve | Zhongmei | hydraulic oil pump | Wanye |
hydraulic cylinder | Boli | PTO | Jiashan |
hydraulic oil tube | Guangzhou Tianhe | control system | PLC/ CAN |
balance valve | Zhongmei | turn over mechnism | 240L*2pcs |
