Garbage compactor truck

Dongfeng Doric 12m3 garbage compactor truck

Origin: Suizhou China

Brand: CLW

Emission standard: EURO 2/3/4/5/6

Steering wheel: LHD/RHD

Chassis: Isuzu/ Sinotruck/Shacman/Dongfeng/CLW/JAC/Foton/JMC

Inquire Now Next Product
  Phone:+86 19571629357
  ADD:South Suburb Chengli Automobile Industry Park, Suizhou city, Hubei province,China
contant us
Phone:+86 19571629357
Email:info@clw-specialtrucks.com
ADD:South Suburb Chengli Automobile Industry Park, Suizhou city, Hubei province,China

Product Details

Dongfeng Doric 12m3 garbage compactor truck parameters:

model CL5140ZYS6BGXouter diameters7640*2360*3000mm
GVW14060Kgrated loading capacity 5265kg
curb weight 8600kgaxle loading capacity 4860/9200kg
front/rear suspension 1180/2460mm max speed 120km/h
approach/departure angle 23/9°

Dongfeng Doric 12m3 garbage compactor truck chassis parameters:

mode EQ1145SJ8CDCbrand Dongfeng
axle number 2tyre number 6
wheelbase 3800mm tyre size 8.25R20
front/rear gauge 1745/1630mmleaf spring number 8/10+7
fuel type diesel engineYuchai 165hp

Dongfeng Doric 12m3 garbage compactor truck body configurations:

The volume is approximately 12m3. The new type of breakable scraper, mid-mounted and rear-mounted sewage tanks. Domestic well-known brand hydraulic system (Zhongmeiduolu valve, Wanli oil pump, Haipres hydraulic cylinder). The driver's cabin and the vehicle body adopt CAN/PLC bus control system, equipped with wireless remote control, photoelectric sensing, and tail flip frame. It is equipped with a compaction valve and a lighting lamp. The rear part can be equipped with pneumatic sealing cover / triangular bucket / large landing bucket / swing arm device.

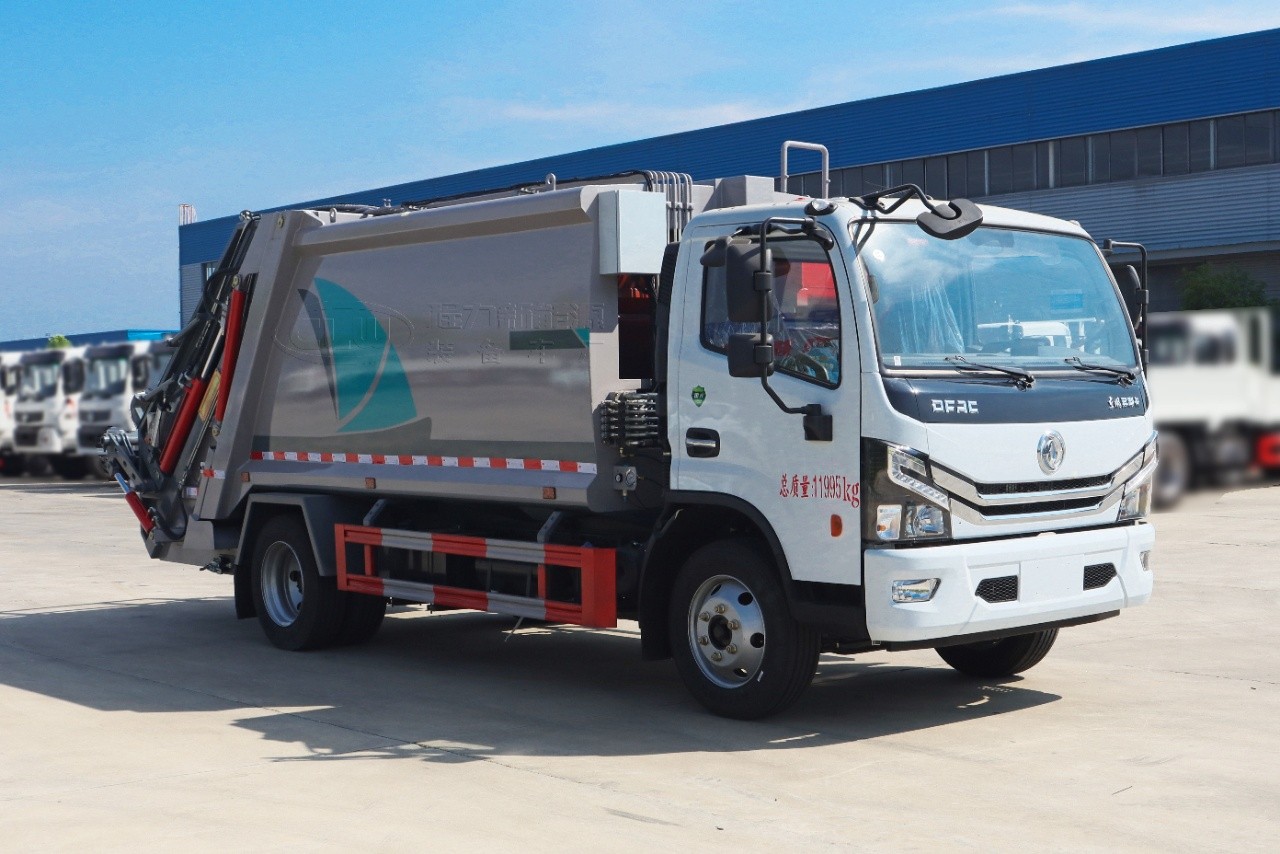

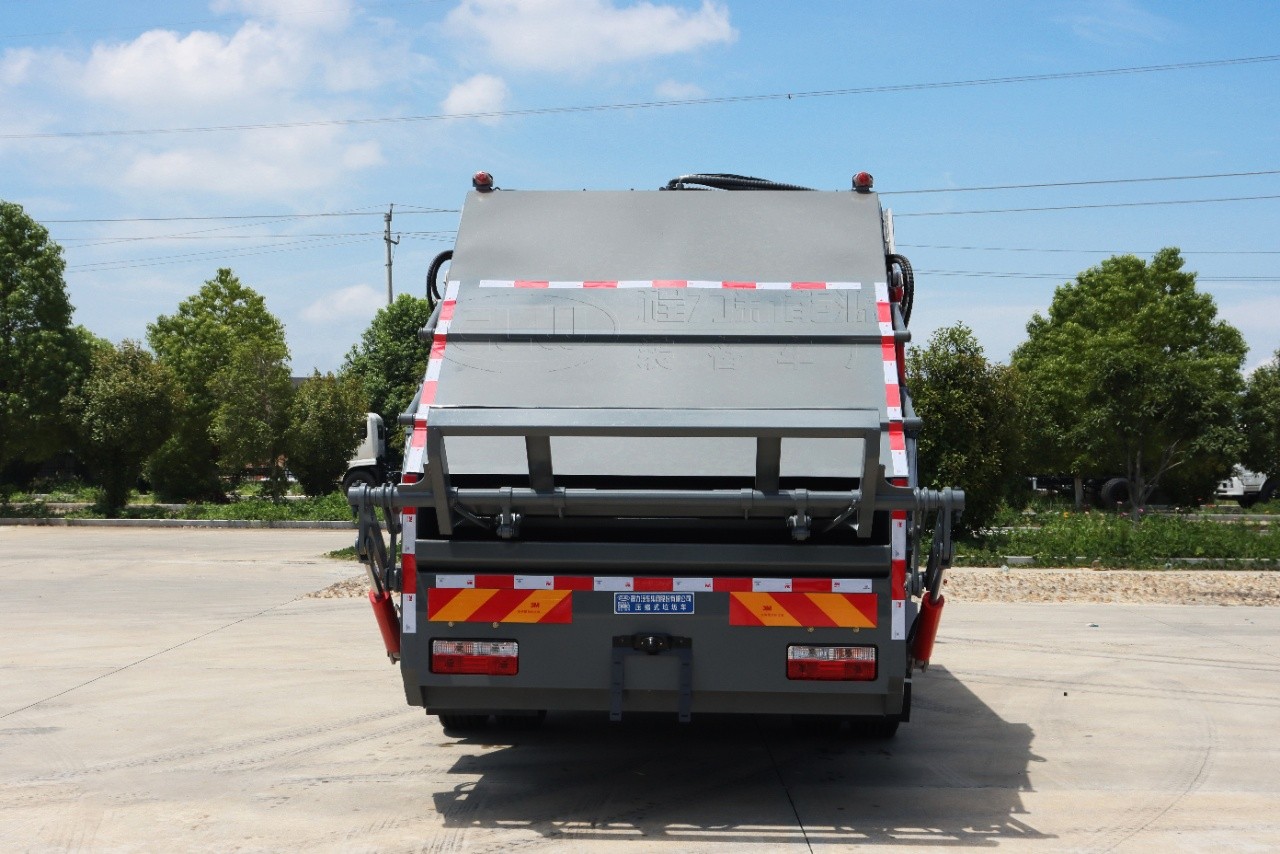

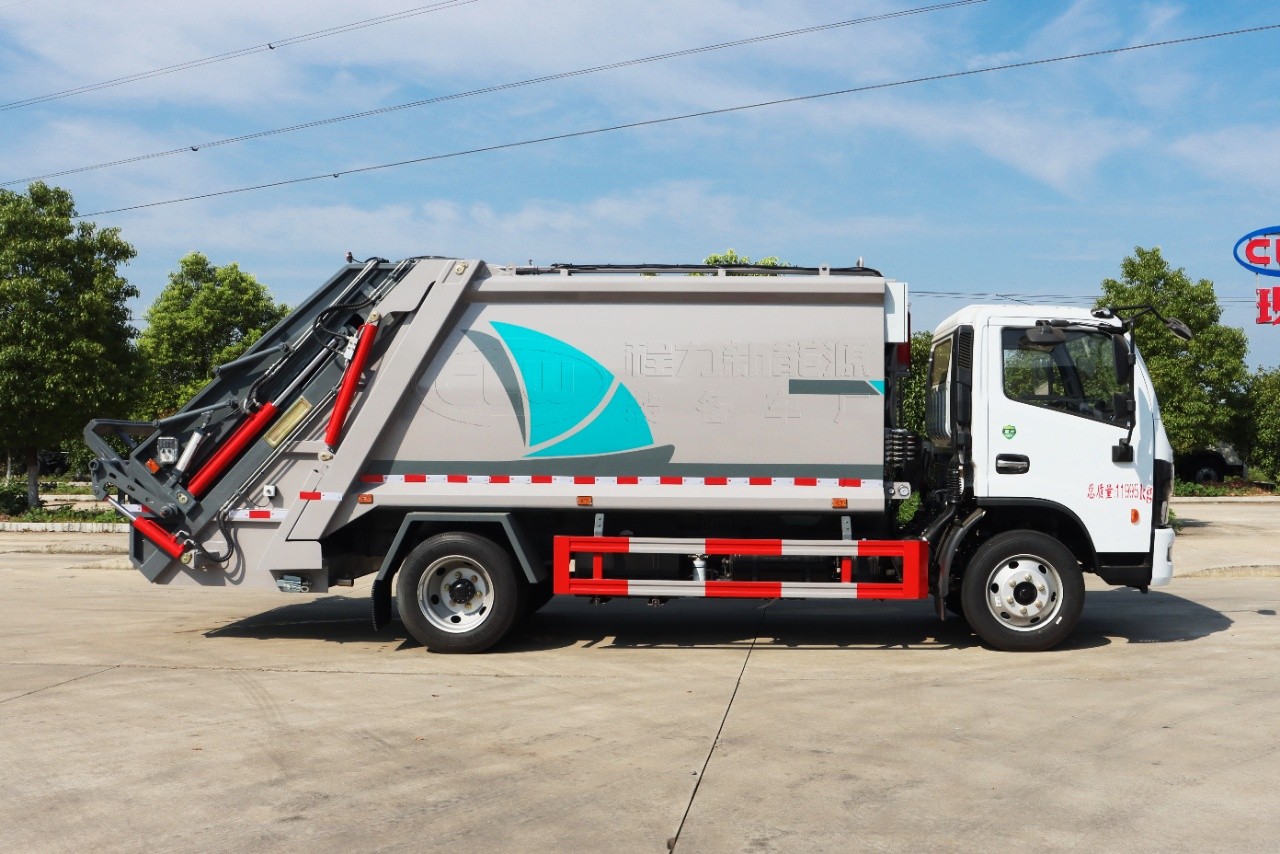

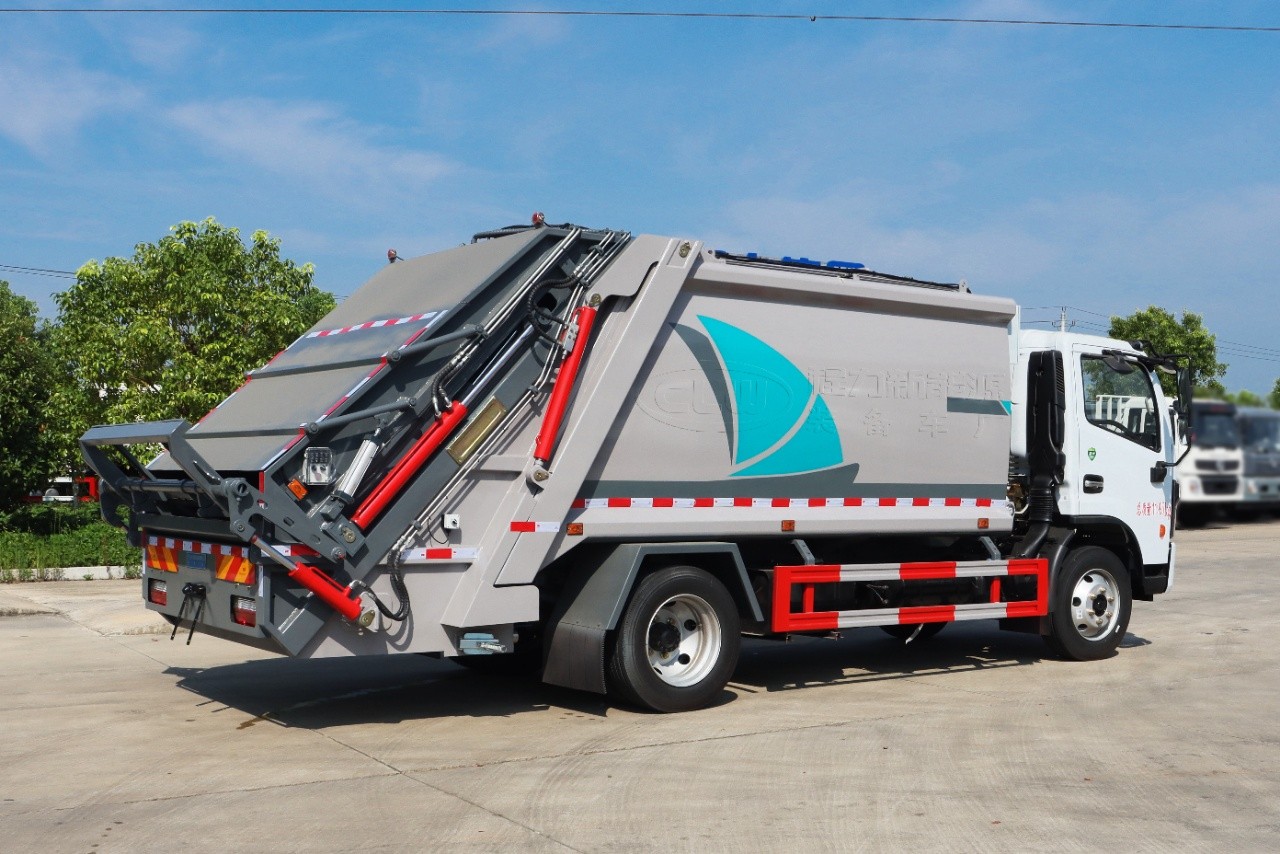

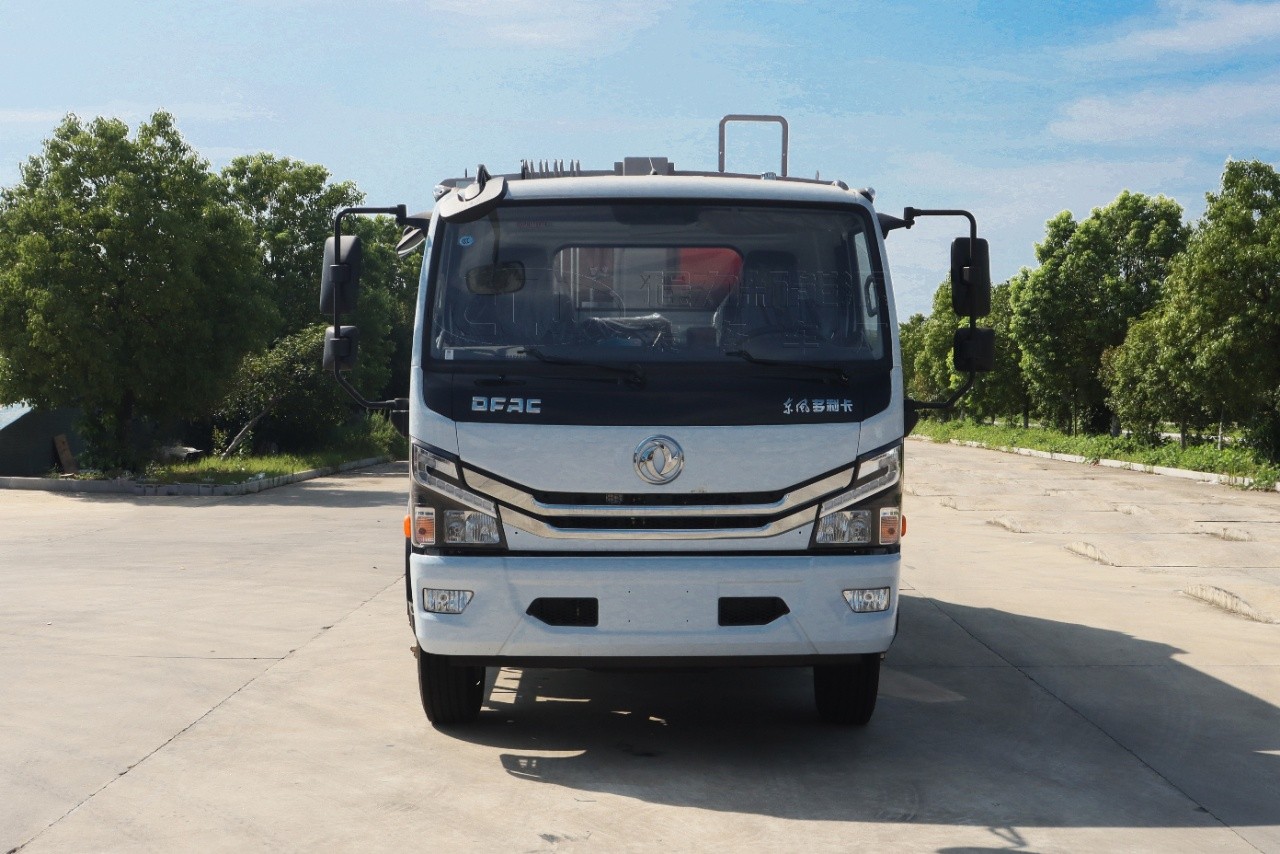

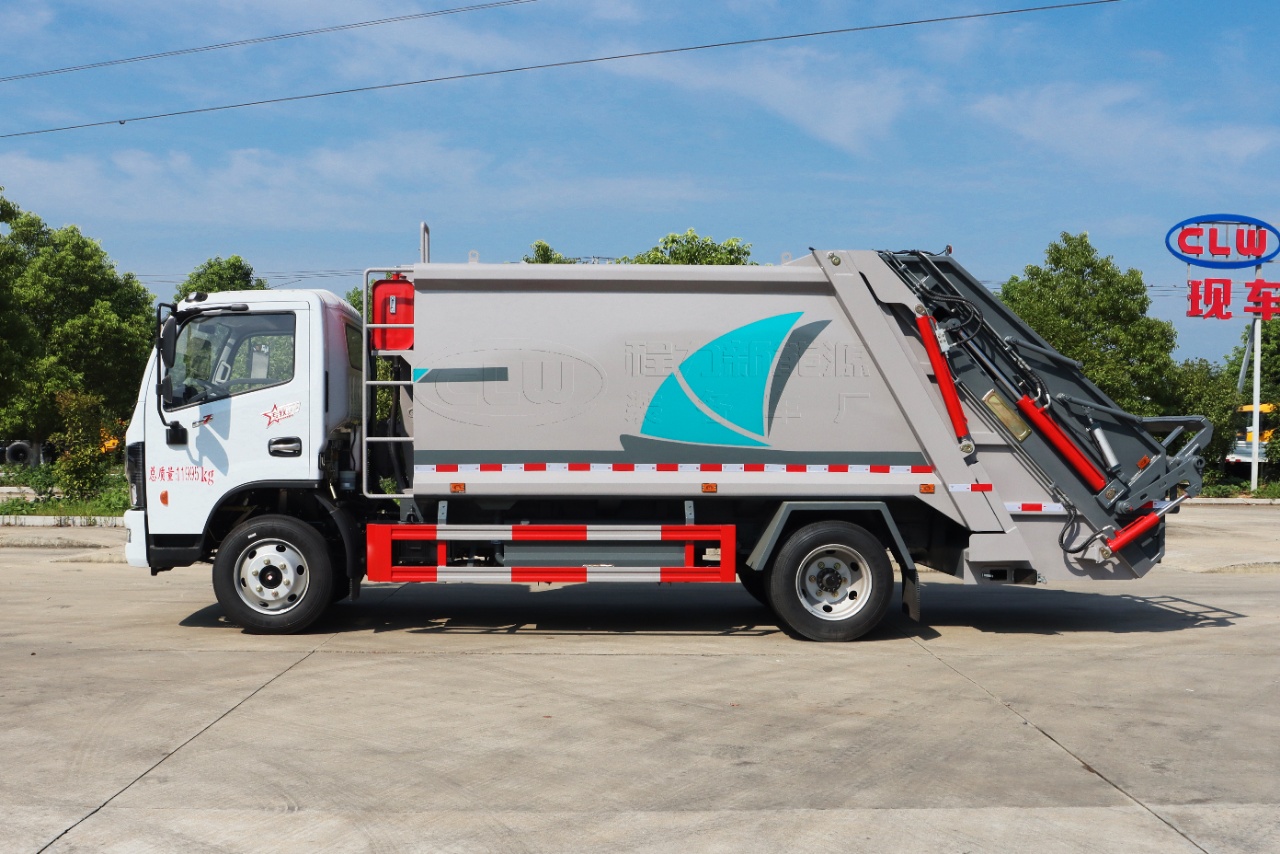

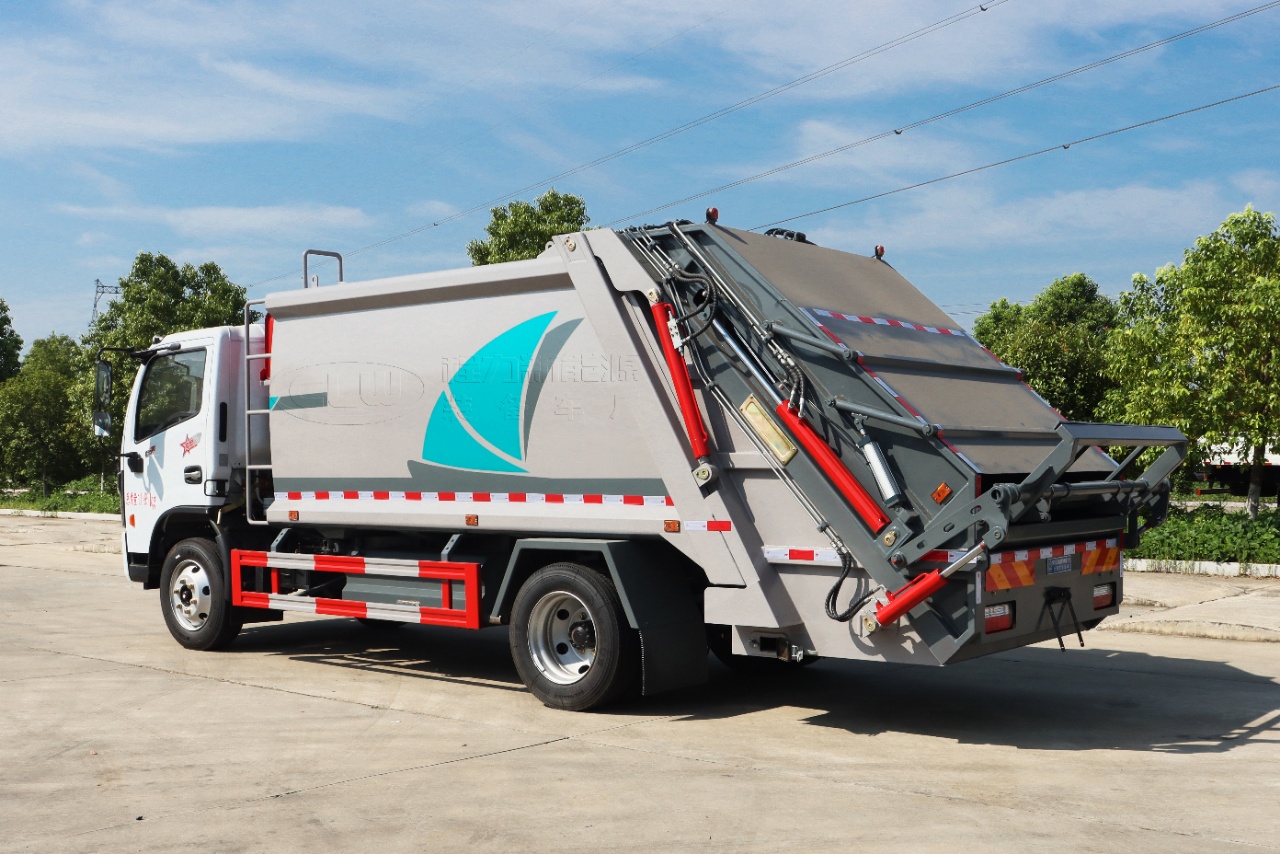

More pictures of the Dongfeng Doric 12m3 garbage compactor truck:

CUSTOMIZATION SERVICE

Special truck customization service to meet customer's special requirements.
